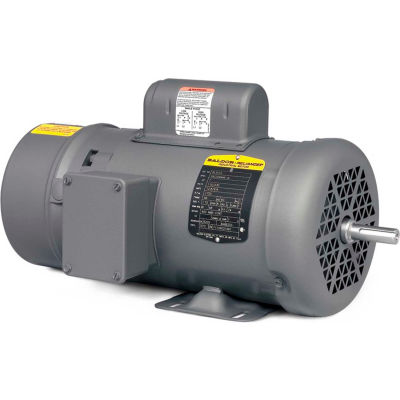

Baldor-Reliance Motor BL3510, 1HP, 1725RPM, 1PH, 60HZ, 56, 3524L, TEFC, F1, BR

Actual product may differ from image shown

Baldor-Reliance Motor BL3510, 1HP, 1725RPM, 1PH, 60HZ, 56, 3524L, TEFC, F1, BR

Item #: WBB388781

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,225.00 up to 11% OFF

Price: $1,085.00

$180.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,085.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1725RPM,1PH,60HZ,56,3524L,TEFC,F1,BR

Features:
  • Spring set brake
  • Power off operation manual release
  • Resets automatically
  • Brakes internally connected to motor on 215T and smaller.
Typical Applications:
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME56
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT48
  • MANUFACTURERS PART NUMBERBL3510
  • RPM RANGE1701-1800
  • 208V AMPS7
  • KVA-CODEK
  • POWER-FACTOR74
  • FL EFFICIENCY68
  • SERIAL-NUMBER--
  • SPEC. NUMBER35C22X945-B
  • BEARING-DRIVE-END6205
  • DESIGN CODEL
  • DOE-CODE--
  • FL AMPS12.8/6.4
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES17.11
  • BRAKE RATING6
  • POLES4
  • INSULATION CLASSF
