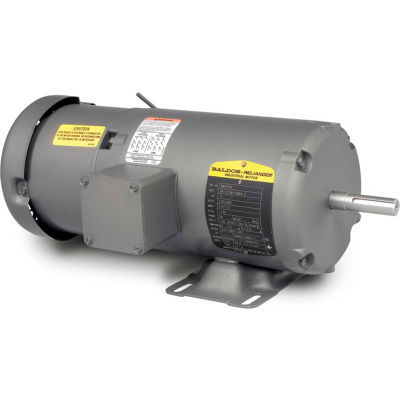

Baldor-Reliance Motor BM3542, .75HP, 1725RPM, 3PH, 60HZ, 56, 3420M, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor BM3542, .75HP, 1725RPM, 3PH, 60HZ, 56, 3420M, TEFC, F1

Item #: WBB388667

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$994.00 up to 18% OFF

Price: $819.00

$136.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $819.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .75HP,1725RPM,3PH,60HZ,56,3420M,TEFC,F1

Features:
  • Spring set brake
  • Power off operation manual release
  • Resets automatically
  • Brakes internally connected to motor on 215T and smaller.
Typical Applications:
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETEFC
  • FRAME56
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT32
  • MANUFACTURERS PART NUMBERBM3542
  • RPM RANGE1701-1800
  • 208V AMPS3.6
  • KVA-CODEK
  • POWER-FACTOR60
  • FL EFFICIENCY75.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER34-3108-0883-C
  • BEARING-DRIVE-END6203
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS3.2-3/1.5
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES16.45
  • BRAKE RATING6
  • POLES4
  • INSULATION CLASSB
