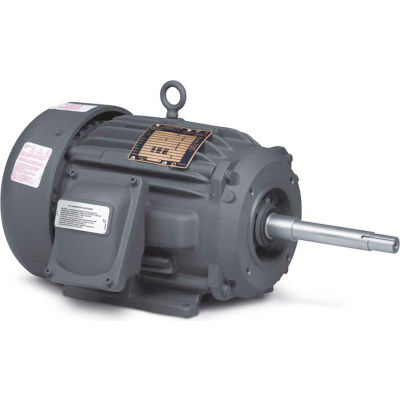

Baldor-Reliance Pump Motor, EJPM71170T-I,3PH,10/7.5HP,230/460/190/380V,1765/1465RPM,60/50HZ,215TCZ

Actual product may differ from image shown

Baldor-Reliance Pump Motor, EJPM71170T-I,3PH,10/7.5HP,230/460/190/380V,1765/1465RPM,60/50HZ,215TCZ

Item #: WBB909546

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,445.00

$407.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,445.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Pump Motor, EJPM71170T-I, 3PH, 10//7.5HP, 230/460//190/380V, 1765//1465RPM, 60//50HZ, 215TCZ

Our pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion proof ratings. Applications for these run the gamut from swimming pool pumps to medium and high thrust in-line pumps used in water treatment plants. Horse powers range in size from 1/3 through 75 HP.

Features
  • Labyrinth-type recessed shaft slinger for increased bearing protection Explosion-proof breather
  • drain to prevent build up of condensation
  • 55°C ambient, Class F insulation
  • Corrosion resistant finish with two part epoxy coating
  • UL and CSA approved for Division 1, Class I, Group C & D. 1.15 service factor (EJPM71170T-I has 1.0 S.F.)
  • Super-E® motors have NEMA Premium® efficiency and 3 year warranty
Application(s)
  • On and off shore drill rig service, bulk fuel terminals, and transfer stations. For use in high humidity hazardous-duty applications driving pumps, compressors, blowers, fans, and many other loads that require 1.15 service factor explosion-proof motors. Designed with features for use in the petroleum industry. Includes Class I, Group C & D approval for use in areas where hydrogen sulfide is present.

Product Specifications

  • HORSEPOWER10
  • ENCLOSUREXP
  • FRAME215TCZ
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1765
  • MOTOR RPM 50Hz1465
  • RPM1765//1465
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60//50
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPEExplosion Proof
  • DUTYContinuous
  • MANUFACTURERS PART NUMBEREJPM71170T-I
  • RPM RANGE1701-1800
  • is_motorYes
  • KVA-CODEJ
  • POWER-FACTOR81
  • FL EFFICIENCY92.4
  • GREASEPOLYREX EM
  • SPEC. NUMBER07K202X598G3
  • BEARING-DRIVE-END6307
  • DESIGN CODEA
  • BALDOR CATALOG NUMBEREJPM71170T-I
  • PULLEY-BEARING6307
  • FL AMPS24.6/12.3//23/11.5
  • TYPEPump Motor
  • C-DIMENSION INCHES25.65
  • INSULATION CLASSF
