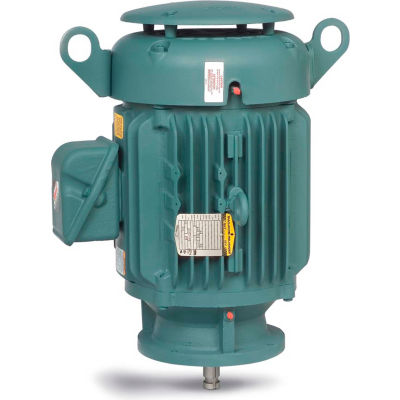

Baldor-Reliance Pump Motor, VHECP4115T, 3 Phase, 50 HP, 230/460 Volts, 1775 RPM, 60 HZ, TEFC, 326HP

Actual product may differ from image shown

Baldor-Reliance Pump Motor, VHECP4115T, 3 Phase, 50 HP, 230/460 Volts, 1775 RPM, 60 HZ, TEFC, 326HP

Item #: WBB908968

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $7,295.00

$1,215.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $7,295.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Pump Motor, VHECP4115T, 3 Phase, 50 HP, 230/460 Volts, 1775 RPM, 60 HZ, TEFC, 326HP

Our pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion proof ratings. Applications for these run the gamut from swimming pool pumps to medium and high thrust in-line pumps used in water treatment plants. Horse powers range in size from 1/3 through 75 HP.

Features
  • Corrosion resistant epoxy finish
  • Cast iron construction
  • Designed for vertical mounting
  • Rotatable conduit box
  • Stainless steel nameplates
  • Shaft seals
  • Energy efficient windings
  • Two lifting lugs
Application(s)
  • For medium and high thrust in-line pump applications. Waste water treatment plants, petro chemical industries, pulp and paper mills and agricultural irrigation applications.

Product Specifications

  • HORSEPOWER50
  • ENCLOSURETEFC
  • FRAME326HP
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1775
  • RPM1775
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • DUTYContinuous
  • MANUFACTURERS PART NUMBERVHECP4115T
  • RPM RANGE1701-1800
  • MANUFACTURER PART NUMBERVHECP4115T
  • 208V AMPS122
  • KVA-CODEH
  • is_motorYes
  • POWER-FACTOR87
  • FL EFFICIENCY94.5
  • SPEC. NUMBER12S033X278G1
  • BEARING-DRIVE-END6312
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERVHECP4115T
  • DOE-CODE010A
  • FL AMPS114/57
  • BEARING-OPP-DRIVE-END6311
  • TYPEPump Motor
  • C-DIMENSION INCHES34.72
  • INSULATION CLASSF
