Baldor-Reliance Motor ECP3774T-4, 10HP, 1760RPM, 3PH, 60HZ, 215T, 0748M, TEFC, F1

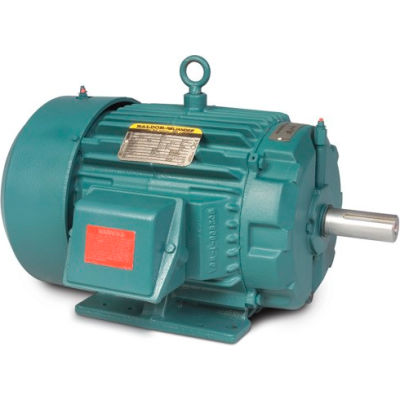

Actual product may differ from image shown

Baldor-Reliance Motor ECP3774T-4, 10HP, 1760RPM, 3PH, 60HZ, 215T, 0748M, TEFC, F1

Item #: WBB388414

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,899.00 up to 20% OFF

Price: $1,517.00

$252.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,517.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 10HP,1760RPM,3PH,60HZ,215T,0748M,TEFC,F1

Features:
  • Heavy gauge steel and cast iron frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER10
  • ENCLOSURETEFC
  • FRAME215T
  • BRANDBaldor-Reliance
  • RPM1760
  • PHASE3
  • CLASS INSULATIONF
  • VOLTAGE460
  • HERTZ60
  • SERVICE FACTOR1.15
  • ENCLOSURE TYPETotally Enclosed
  • RPM RANGE1701-1800
  • FL AMPS12.5
  • MANUFACTURER PART #ECP3774T-4
  • WEIGHT LBS.211
  • is_motoryes
  • C-DIMENSION INCHES19.5
  • FL EFFICIENCY92.4
