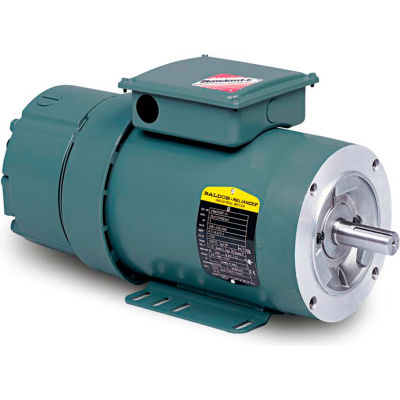

Baldor-Reliance Motor BNM3538-D, .5HP, 1725RPM, 3PH, 60HZ, 56, 3516M, TENV, F3, B

Baldor-Reliance Motor BNM3538-D, .5HP, 1725RPM, 3PH, 60HZ, 56, 3516M, TENV, F3, B

Item #: WBB388872

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$816.00 up to 18% OFF

Price: $672.00

$112.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $672.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,1725RPM,3PH,60HZ,56,3516M,TENV,F3,B

Features:
  • UL/CSA recognized and CE certified
  • Dodge "D" Series brakes are spring set
  • Brakes are single phase with built-in rectifier to DC
  • Brakes have a manual release lever
  • 56-140 frames have low profile F3 top-mounted conduit box
  • D series brake motors can be universally mounted
  • Inverter ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 2 year warranty
Typical Applications:
Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETENV
  • FRAME56
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT48
  • RPM RANGE1701-1800
  • SPECIFICATION NUMBER35X056-1802G1
  • 208V AMPS1.8
  • KVA-CODEH
  • POWER-FACTOR83
  • FL EFFICIENCY75.5
  • SERIAL-NUMBER--
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERBNM3538-D
  • DOE-CODE--
  • FL AMPS1.8-1.6/.8
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES14.96
  • BRAKE RATING6
  • POLES4
  • INSULATION CLASSF
