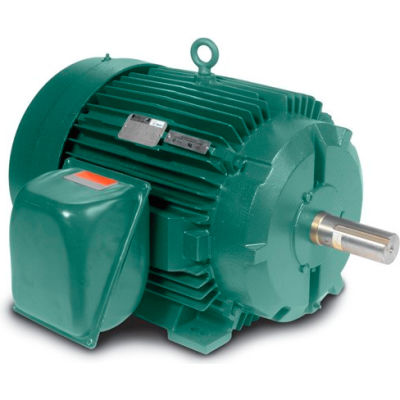

Baldor-Reliance Motor IDVSNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3517M, TENV, F1

Baldor-Reliance Motor IDVSNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3517M, TENV, F1

Item #: WBB389242

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$568.00 up to 18% OFF

Price: $467.95

Save $23.40 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .75HP,1750RPM,3PH,60HZ,56C,3517M,TENV,F1

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETENV
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1750
  • RPM1750
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT34
  • RPM RANGE1701-1800
  • ROTOR-INERTIA0.1
  • SLIP-HERTZ1.7
  • is_motorYes
  • FL EFFICIENCY84
  • SERIAL-NUMBER--
  • SPEC. NUMBER35T995P667G1
  • BLOWER-PHASE--
  • BLOWER-AMPS--
  • BLOWER-HERTZ--
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERIDVSNM3542
  • DOE-CODE--
  • FL AMPS2.3/1.15
  • BLOWER-VOLTS--
  • MAGNETIZING-CURRENT1.5/.75
  • MAXIMUM-RPM6000
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES13.84
  • POLES4
  • INSULATION CLASSH
