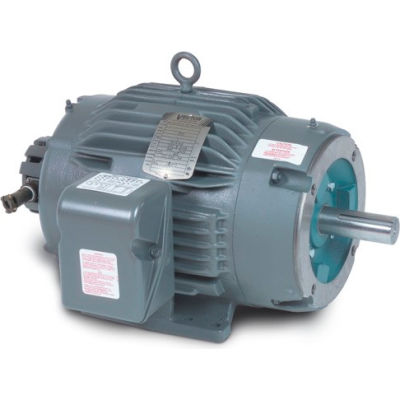

Baldor-Reliance Motor ZDM3665T, 5HP, 1750RPM, 3PH, 60HZ, 184TC, 0640M, TEBC, F1

Baldor-Reliance Motor ZDM3665T, 5HP, 1750RPM, 3PH, 60HZ, 184TC, 0640M, TEBC, F1

Item #: WBB391827

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,711.00 up to 18% OFF

Price: $3,052.00

$508.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,052.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,1750RPM,3PH,60HZ,184TC,0640M,TEBC,F1

Features:
  • Full torque at zero speed
  • 1000:1 constant torque range
  • Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC)
  • 1/3 thru 500 horsepower
  • Cast Iron construction
  • C-Face with base 143TC thru 449TC
  • Base mount only in frames 5007L-5009L
  • Class H Insulated
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
Typical Applications:
Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to maximum speed.

Product Specifications

  • HORSEPOWER5
  • ENCLOSURETEBC
  • FRAME184TC
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1750
  • RPM1750
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6205
  • WEIGHT121
  • RPM RANGE1701-1800
  • ROTOR-INERTIA0.37
  • SLIP-HERTZ1.7
  • is_motorYes
  • FL EFFICIENCY90.2
  • SERIAL-NUMBER--
  • SPEC. NUMBER06F552W352Z1
  • BLOWER-PHASE1
  • BLOWER-AMPS0.26
  • BLOWER-HERTZ60
  • BEARING-DRIVE-END6206
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERZDM3665T
  • DOE-CODE--
  • FL AMPS13/6.5
  • BLOWER-VOLTS115
  • MAGNETIZING-CURRENT6.8/3.4
  • MAXIMUM-RPM6000
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES21.71
  • POLES4
  • INSULATION CLASSH
