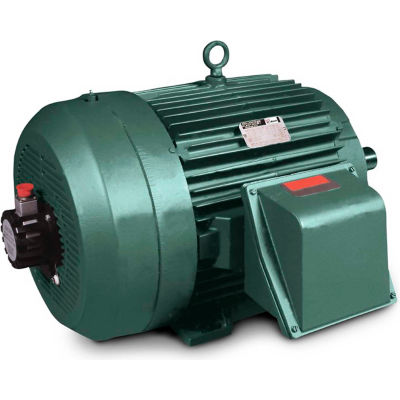

Baldor-Reliance Inverter/Vector Motor, ZDVSM4110T, 3PH, 40HP, 1775RPM, 230/460V, TEFC, 324T

Actual product may differ from image shown

Baldor-Reliance Inverter/Vector Motor, ZDVSM4110T, 3PH, 40HP, 1775RPM, 230/460V, TEFC, 324T

Item #: WBB910425

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $6,094.00

$1,015.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $6,094.00 or save 3% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Inverter/Vector Motor, ZDVSM4110T, 3PH, 40HP, 1775RPM, 230/460V, TEFC, 324T

Inverter/Vector motors are equipped with a superior insulation system designed to comply with NEMA MG-1 part 31 for inverter power. The motors available from stock range from 1/3 Hp to 1000 Hp. Designed for a variety of industrial applications where full torque is needed from base speed down to zero speed. Applications include conveyors, pumps, fans, metal processing, compressors, test stands, material handling, packaging equipment, printing presses, and others requiring exact speeds and positioning.

Features
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Application(s)
  • Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.


Product Specifications

  • HORSEPOWER40
  • ENCLOSURETEFC
  • FRAME324T
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1775
  • RPM1775
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6311
  • DUTYContinuous
  • RPM RANGE1701-1800
  • ROTOR-INERTIA8.53
  • SLIP-HERTZ0.83
  • is_motorYes
  • FL EFFICIENCY94.1
  • DESIGN CODEA
  • DRIVE END BEARING SIZE6312
  • BALDOR CATALOG NUMBERZDVSM4110T
  • DOE-CODE010A
  • FL AMPS100/50
  • TYPEInverter/Vector Motor
  • MAXIMUM-RPM2700
  • C-DIMENSION INCHES33.75
  • MOTOR-MAX-HP40TE
  • INSULATION CLASSF
  • MOTOR-MAX-VOLTS230/460
