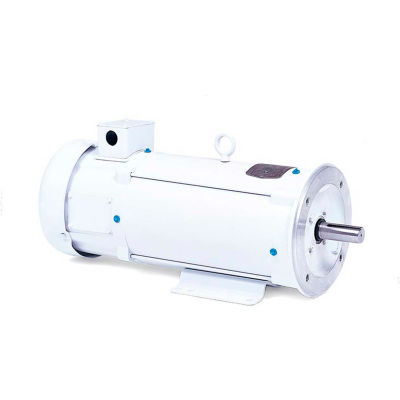

Baldor-Reliance Motor CDPWD3330, .5HP, 1750RPM, DC, 56C, 3336P, TENV, F1

Baldor-Reliance has designed a Permanent Magnet DC Motor with an integral 50 VDC per 1000 RPM precision tachometer. Its compact design fits into many locations where a conventional motor won't fit. Plus it is less costly than buying the motor, tach kit and tachometer. Applications include precision metering pumps and tensioning. Features Provides an integral 50 VDC per 1000 RPM precision tachometer for closed loop drive system Class F insulation 20:1 constant torque speed range with NEMA Type control 3300P motors TENV, all others are TEFC Application(s) Conveyors and metering pumps where ...

Permanent magnet DC motors are available with a choice for standard painted or paint-free finishes. PMDC motors may be used for adjustable speed applications such as conveyors or packing equipment. They may be paired with our BCWD140 Washdown DC SCR control. Features Moisture sealant on blot heads between frame and endplates Neoprene gasketed conduit box Double sealed ball bearings Forsheda® running contact v-ring slinger Stainless steel shaft Electrostatic epoxy paint coating Class F insulation Tach adaptable 3300P motors are TENV, all others are TEFC Application(s) Food processing ...

Baldor-Reliance Motor, .5HP,1750RPM,DC,56C,3428P,TEFC,F1 Features: Moisture resistant 200°C magnet wire Sealed ball bearings with moisture resistant grease Contact lip seals on shaft extensions Neoprene gaskets Special processed endplates 300 series stainless steel motor frame, base, shaft and hardware No exterior paint Tropicalized Typical Applications: Food processing, packaging and other applications where the motor is regularly exposed to high pressure washdown with caustic solutions.

Baldor-Reliance Motor, .25HP,1750RPM,DC,56C,3320P,TENV,F1 Features: Provides an integral 50 VDC per 1000 RPM precision tachometer for closed loop drive system Class F insulation 20:1 constant torque speed range with NEMA Type control 3300P motors TENV, all others are TEFC Typical Applications: Conveyors and metering pumps where precise speed regulation is required.

Permanent Magnet DC Motors are available for 1/4 - 2 HP and wound field motors of 1/2 - 3 HP for Class I, Group D and Class II, Group F & G locations with listing by both UL and CSA. Applications include conveyors and mixers in hazardous locations. Features NEMA C-Face with welded on base UL and CSA certified Class I, Group D / Clas II Group F&G. T3c Thermostat and explosion proof conduit box included Not tach adaptable Application(s) Conveyors, feeders and pumps where variable speed and constant torque are required in hazardous locations.
