Baldor-Reliance Motor VEWDM3611T, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 3628M, TEFC, F1

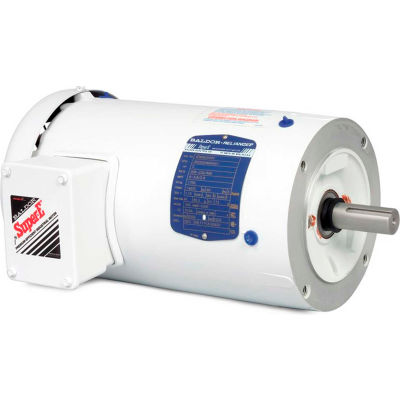

Actual product may differ from image shown

Baldor-Reliance Motor VEWDM3611T, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 3628M, TEFC, F1

Item #: WBB391340

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,334.00 up to 20% OFF

Price: $1,066.00

$177.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,066.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 3HP,1760RPM,3PH,60HZ,182TC,3628M,TEFC,F1

Features:
  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
Typical Applications:
Food processing and other applications where motor is regularly exposed to high pressure wash down.

Product Specifications

  • HORSEPOWER3
  • ENCLOSURETEFC
  • FRAME182TC
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Footless
  • MOTOR RPM 60Hz1760
  • RPM1760
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT69
  • RPM RANGE1701-1800
  • BALDOR CATALOG NUMBERVEWDM3611T
  • FL AMPS8.6-8.2/4.1
  • MANUFACTURER PART #VEWDM3611T
  • BEARING-OPP-DRIVE-END6205
  • DRIVE END FLANGEC-Face
  • is_motorYes
  • C-DIMENSION INCHES16.54
  • POLES4
