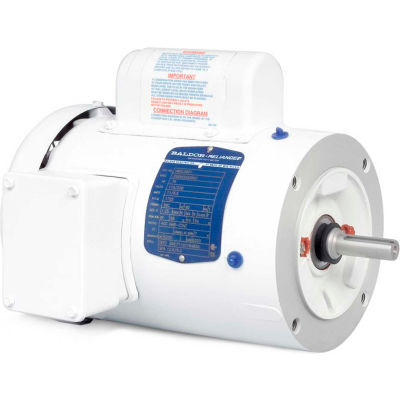

Baldor-Reliance Motor VWDL3510, 1HP, 1725RPM, 1PH, 60HZ, 56C, 3524L, TEFC, F1, N

Actual product may differ from image shown

Baldor-Reliance Motor VWDL3510, 1HP, 1725RPM, 1PH, 60HZ, 56C, 3524L, TEFC, F1, N

Item #: WBB391920

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$704.00 up to 16% OFF

Price: $591.00

$98.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $591.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1725RPM,1PH,60HZ,56C,3524L,TEFC,F1,N

Features:
  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
Typical Applications:
Food processing and other applications where motor is regularly exposed to high pressure wash down.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Footless
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT39
  • RPM RANGE1701-1800
  • BALDOR CATALOG NUMBERVWDL3510
  • FL AMPS12.8/6.4
  • MANUFACTURER PART #VWDL3510
  • BEARING-OPP-DRIVE-END6203
  • DRIVE END FLANGEC-Face
  • is_motorYes
  • C-DIMENSION INCHES13.25
  • POLES4
