Leeson Motors Motor Washdown Motor-1/.75HP, 208-230/460V, 3450/2850RPM, TENV, RIGID C,  85.5 Eff.

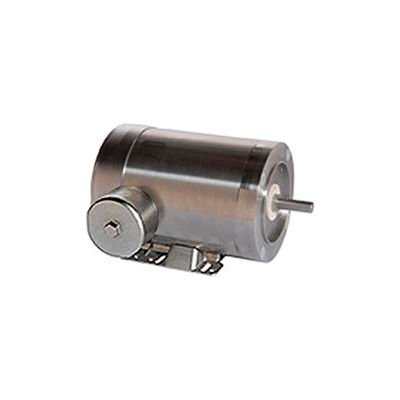

Actual product may differ from image shown

Leeson Motors Motor Washdown Motor-1/.75HP, 208-230/460V, 3450/2850RPM, TENV, RIGID C, 85.5 Eff.

Item #: WBB228182

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,747.00 up to 51% OFF

Price: $889.00

$148.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $889.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $889.00 ea.
  • Buy 3+ $863.00 ea.

Quantity

Customers Also Viewed

Extreme Washeguard All-Stainless Washdown Motor, 3-Phase: 1/.75HP, 3450/2850 RPM, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 56H Frame, RIGID C, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 2.8-2.6/1.3&2.4/1.2, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 85.5, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length: 1-7/8".

Revolutionary Designed Stainless Steel Motors are built to be the last Stainless Steel Washdown motors you will ever need!

  • Meet EPACT for non-exempt when tested without shaft seals
  • Total winding encapsulation using an Epoxy Resin
  • LEESON exclusive IRIS™ Inverter- Rated Insulation System
  • Motors are UL component recognized
  • CSA Energy Efficiency Verification
  • Construction is CSA Certified for safety
  • All exterior components are 300-Series stainless steel
  • Protech Bearing isolator used for the output shaft seal
  • Double Lip Viton shaft seal used on non-drive output shaft on TEFC motors
  • Minimal exterior fasteners, no throughbolt design and screw on conduit box covers
  • Pre-lubricated double-sealed bearings
  • Quick access to bearings
  • Rigid Cast Base for rugged applications
  • Full fact nameplate is laser etched
  • BISSC certified for baking


Click here to see our full selection of Motor Controls and Drives.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETENV
  • FRAME56H
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz3450
  • RPM3450
  • PHASE3
  • VOLTAGE208-230/460
  • NAMEPLATE AMPS2.8-2.6/1.3&2.4/1.2
  • COMPATIBLE WITH/REPLACESBaldor CSSEWDM3545
  • HERTZ60/50
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONCCW/CW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT42
  • ULY
  • CSAY
  • LEESON MODEL NO.CZ6T34VK18AA
  • UPC69172036749
  • DUTYContinuous
  • RPM RANGE3001-3600
  • is_motorYes
  • FL EFFICIENCY85.5
  • CATALOG NUMBER117122.00
  • DESIGNSq Cage Inductor Run
  • BEARING-DRIVE-END6205
  • FL AMPS2.8-2.6/1.3
  • MANUFACTURER PART #117122.00
