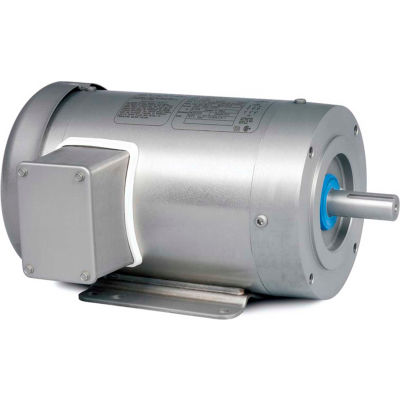

Baldor-Reliance Washdown Motor CESSWDM3550, 3 PH, 1.5 HP, 3500 RPM, 208-230/460 V, TENV, 56C FR

Actual product may differ from image shown

Baldor-Reliance Washdown Motor CESSWDM3550, 3 PH, 1.5 HP, 3500 RPM, 208-230/460 V, TENV, 56C FR

Item #: WBB909630

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $999.00

$166.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $999.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Washdown Motor CESSWDM3550, 3 PH, 1.5 HP, 3500 RPM, 208-230/460 V, TENV, 56C FR

Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.

Features
  • All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft, and base
  • Moisture resistant 200°C ISR® (Inverter Spike Resistant) magnet wire
  • Four condensate drains in each endplate
  • Enplate rabbets sealed and conduit box gasketed
  • Lip seals
  • Especially effective in highly corrosive environments where paint or other finishes do not hold up
Application(s)
  • Food processing, packaging, outdoor and highly corrosive environments.

Product Specifications

  • HORSEPOWER1 1/2
  • ENCLOSURETENV
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz3500
  • RPM3500
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • DUTYContinuous
  • RPM RANGE3001-3600
  • SPECIFICATION NUMBER35S613R929G1
  • 208V AMPS3.7
  • is_motorYes
  • KVA-CODEM
  • POWER-FACTOR90
  • FL EFFICIENCY85.5
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERCESSWDM3550
  • FL AMPS3.7-3.6/1.8
  • MANUFACTURER PART #CESSWDM3550
  • BEARING-OPP-DRIVE-END6203
  • TYPEWashdown Motor
  • C-DIMENSION INCHES12.97
  • INSULATION CLASSF
