Baldor-Reliance Washdown Motor EWDM3546T, 3 Phase, 1 HP, 1745 RPM, 208-230/460 Volts, TENV, 143T FR

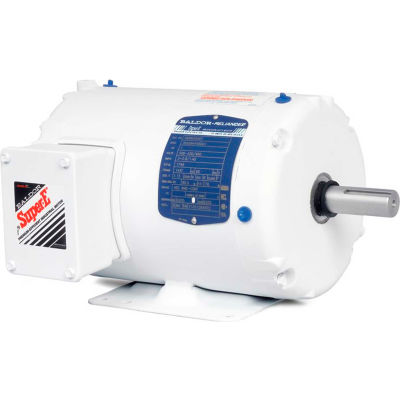

Actual product may differ from image shown

Baldor-Reliance Washdown Motor EWDM3546T, 3 Phase, 1 HP, 1745 RPM, 208-230/460 Volts, TENV, 143T FR

Item #: WBB909697

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $653.00

$108.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $653.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Washdown Motor EWDM3546T, 3 Phase, 1 HP, 1745 RPM, 208-230/460 Volts, TENV, 143T FR

Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.

Features
  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
Application(s)
  • Food processing and other applications where motor is regularly exposed to high pressure wash down.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETENV
  • FRAME143T
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1745
  • RPM1745
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • DUTYContinuous
  • RPM RANGE1701-1800
  • SPECIFICATION NUMBER35SS584P560G1
  • KVA-CODEM
  • is_motorYes
  • POWER-FACTOR76
  • FL EFFICIENCY85.5
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBEREWDM3546T
  • FL AMPS3-2.9/1.45
  • MANUFACTURER PART #EWDM3546T
  • BEARING-OPP-DRIVE-END6203
  • TYPEWashdown Motor
  • C-DIMENSION INCHES12.12
  • INSULATION CLASSF
