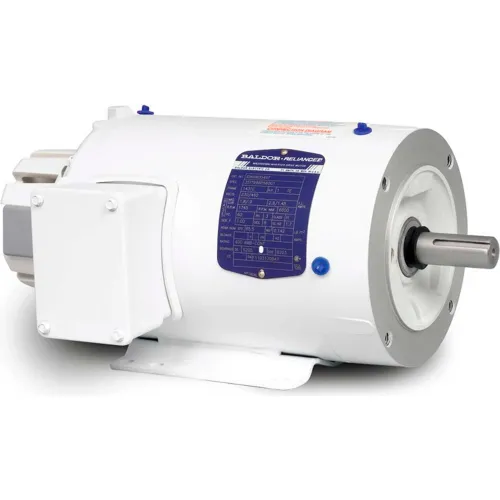

Baldor-Reliance Washdown Motor IDWNM22937T, 3 Phase, 7.5 HP, 1765 RPM, 230/460 Volts, TENV, 254TC FR

Actual product may differ from image shown

Baldor-Reliance Washdown Motor IDWNM22937T, 3 Phase, 7.5 HP, 1765 RPM, 230/460 Volts, TENV, 254TC FR

Item #: WBB909530

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$4,132.00 up to 27% OFF

Price: $3,036.00

$506.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Washdown Motor IDWNM22937T, 3 Phase, 7.5 HP, 1765 RPM, 230/460 Volts, TENV, 254TC FR

Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.

Features
  • Motors include provisions for HS25 and HS35 encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meets NEMA MG 1, Part 31
Application(s)
  • Conveyors, Pumps and other equipment in food processing and other severe environments where motors are washed on a regular basis. For adjustable speed applications not requiring full torque at zero speed.

  • HORSEPOWER 7 1/2
  • ENCLOSURE TENV
  • FRAME 254TC
  • BRAND Baldor-Reliance
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 1765
  • RPM 1765
  • PHASE 3
  • VOLTAGE 230/460
  • HERTZ 60
  • SERVICE FACTOR 1
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • DUTY Continuous
  • RPM RANGE 1701-1800
  • INSULATION CLASS H
  • C-DIMENSION INCHES 23.92
  • MAXIMUM-RPM 5000
  • MAGNETIZING-CURRENT 8/4
  • TYPE Washdown Motor
  • BEARING-OPP-DRIVE-END 6208
  • MANUFACTURER PART # IDWNM22937T
  • FL AMPS 18.2/9.1
  • BALDOR CATALOG NUMBER IDWNM22937T
  • DESIGN CODE B
  • BEARING-DRIVE-END 6309
  • FL EFFICIENCY 91
  • is_motor Yes
  • SPECIFICATION NUMBER 39R099W631G1
  • SLIP-HERTZ 1.09
