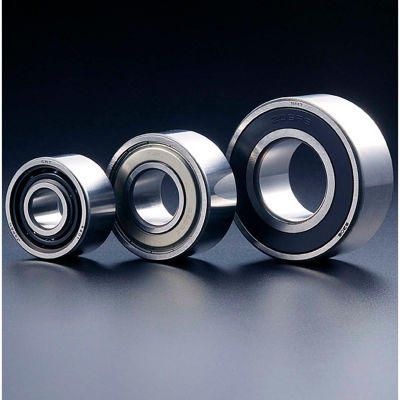

SMT 5206-2RS Double Row Angular Contact Ball Bearing, Double Sealed, OD 62mm, Bore 30mm, Metric

SMT 5206-2RS Double Row Angular Contact Ball Bearing, Double Sealed, OD 62mm, Bore 30mm, Metric

Item #: WBB1876349

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 2

Price: $30.95

Save $1.55 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

SMT 5206-2RS Double Row Angular Contact Ball Bearing, Double Sealed, OD 62mm, Bore 30mm, Metric

SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.

Product Specifications

  • BRANDSMT
  • BORE DIAMETER MILLIMETERS30
  • OUTER DIAMETER MILLIMETERS62
  • WIDTH MILLIMETERS23.8
  • DYNAMIC LOAD RATING (N)24400
  • STATIC LOAD RATING (N)17600
  • GREASE RPM6500
  • CAGE MATERIALCarbon Steel
  • HOUSING CORNER RADIUS MAX (mm)1
  • CONTACT ANGLE30
  • BEARING TYPEDouble Sealed
  • LUBRICATION TYPEShell Alvania S2, Prepacked
  • TOLERANCEISO Normal
  • MANUFACTURERS PART NUMBER5206-2RS
  • OPERATING TEMPERATURE-13 to 212°F
  • SHAFT FILLET CORNER RADIUS MAX (mm)1
