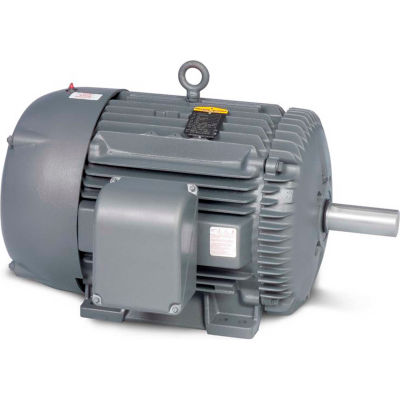

Baldor-Reliance Motor CTM1766T, 50/12.5HP, 1760/870RPM, 3PH, 60HZ, 326T, 1272

Baldor-Reliance Motor CTM1766T, 50/12.5HP, 1760/870RPM, 3PH, 60HZ, 326T, 1272

Item #: WBB388423

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$9,654.00 up to 20% OFF

Price: $7,709.00

$1,284.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $7,709.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 50/12.5HP,1760/870RPM,3PH,60HZ,326T,1272

Features:
  • Premium efficient severe duty multi-speed axial fan motors
  • Class F insulation, 1.15 service factor
  • Lip seal, shaft slinger, and T-drain in both ends
  • Electrical design is single winding variable torque
  • Double shielded ball bearings
  • Burndy type YA compression lead lugs
  • 3 year warranty
Typical Applications:
High moisture environment fan motor for mounting in the air stream of cooling towers.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERCTM1766T
  • HORSEPOWER50
  • MOTOR RPM 60Hz1760/870
  • VOLTAGE460
  • PHASE3
  • FRAME326T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS2S-1W-VT
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1760/870
  • MOUNTINGRigid
  • FULL LOAD AMPS63
  • SHAFT DIAMETER2.125
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6307
  • OPPOSITE END BEARING SIZE6312
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES33.25
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; CSA EEV; UR
  • OVERALL LENGTH30.28
  • is_motorYes
  • LENGTH INCHES33.25
  • WIDTH INCHES25.88
  • HEIGHT INCHES25.88
  • WEIGHT LBS657
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES2.125
  • SHAFT LENGTH INCHES2.125
  • FL EFFICIENCY--
  • DESIGN CODEB
  • OPPOSITE END BEARING6312
  • FL AMPS63/28
  • POLES4; 8
  • FRAME SIZE326T
  • DRIVE END FLANGEStandard
  • ENCLOSURETEFC
