Weights & Dimensions
| Length | 23 in |
| Width | 0.5 in |
| Height | 0.5 in |
| Weight | 293 lbs |
| Shaft Diameter | 1.625 in |
| Opposite End Bearing Size | 6208 |
| Frame Size | 256T |
| Drive End Bearing Size | 6307 |
| Length Less Shaft | 0.5 in |
Product Details
| Number of Speeds | 1 |
| Drive End Flange | Standard |
| Motor RPM 60 Hertz | 1765 rpm |
| Mounting Location | Rigid |
| Phase | 3 |

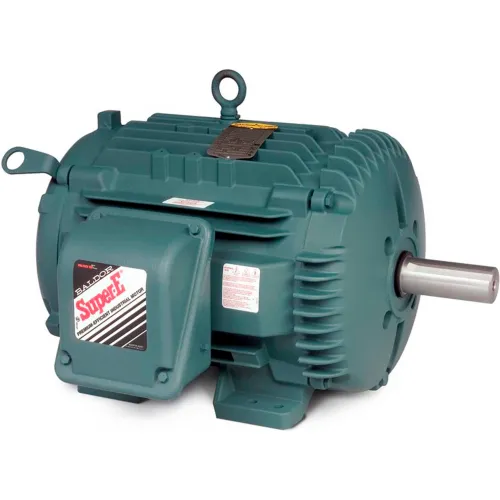

| Manufacturers Part Number | ECTM2334T |
| Enclosure | TEAO |
| Service Factor | 1.15 |
| Brand | Baldor-Reliance |
| Bearing Type | Sealed |
| Insulation Class | F |
| Horsepower | 20 HP |
| Frame | 256T |
| Hertz | 60 Hz |
| Design Code | B |
| Rotation | CCW/CW ° |
| Thermal Protection | None |
| Enclosure Type | Totally Enclosed |
| Voltage | 230/460 V |
| Full Load Efficiency | 93 |
| Full Load Amps | 48/24 FLA |
| Duty | CONT |
| Poles | 4 |
| Rated RPM | 1765 |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| Certifications | CSA; CSA EEV; UR |
