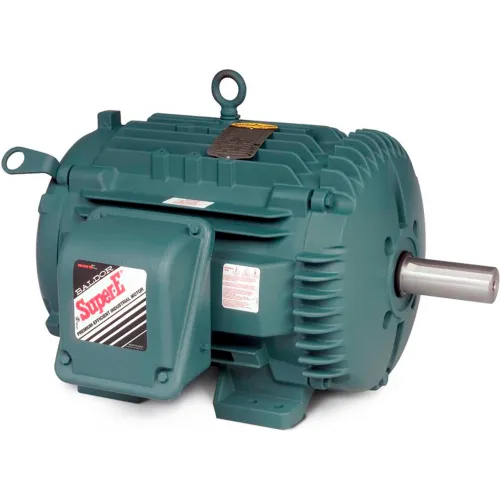

Baldor-Reliance Motor, 7.5 AIR OVERHP,1180RPM,3PH,60HZ,254T,095
Features:
For use in the airstream on cooling towers.
Features:
- 1.15 service factor
- Corrosion resistant expoxy finish
- Double sealed bearings
- Inpro/Seal® labyrinth
- Class F insulation
- Moisture resistant copper windings
- Double dipped and baked
- Stainless steel nameplates
For use in the airstream on cooling towers.
Weights & Dimensions
- Width 25.88 in
- Length 23 in
- Height 25.88 in
- Drive End Bearing Size 6205
- Shaft Diameter 1.625 in
- Frame Size 254T
- Opposite End Bearing Size 6208
- Length Less Shaft 33.25 in
- Weight 290 lbs
Product Details
- Service Factor 1.15
- Enclosure Type Totally Enclosed
- Horsepower 7 1/2 HP
- Is_Motor Yes
- Duty CONT
- Phase 3
- Enclosure TEAO
- Full Load Efficiency 91
- Brand Baldor-Reliance
- Bearing Type Ball
- Full Load Amps 21.4/10.7 FLA
- Design Code B
- Motor RPM 60 Hertz 1180 rpm
- Thermal Protection None
- Hertz 60 Hz
- Manufacturers Part Number ECTM2276T
- Mounting Location Rigid
- Number of Speeds 1
- Rotation CCW/CW °
- Poles 6
- Ambient Temperature 40 °C
- Drive End Flange Standard
- Insulation Class F
- RPM Range 1101-1200 rpm
- Voltage 230/460 V
- Frame 254T
- Rated RPM 1180
Compliance & Certifications
- Certifications CSA; CSA EEV; UR
