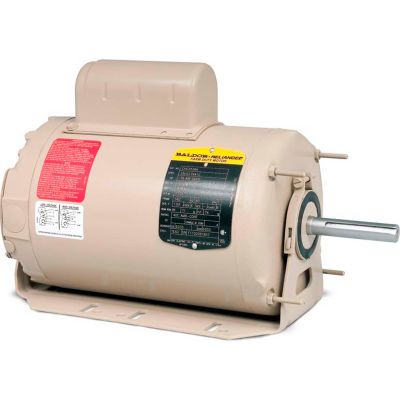

Baldor-Reliance Motor CHC3413A, .25HP, 1700RPM, 1PH, 60HZ, 48Z, 3414C, TEAO, F1

Baldor-Reliance Motor CHC3413A, .25HP, 1700RPM, 1PH, 60HZ, 48Z, 3414C, TEAO, F1

Item #: WBB388843

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$351.00 up to 20% OFF

Price: $280.95

Save $14.05 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Single Phase HVAC Motor

This TEAO (Totally Enclosed Air Over), 0.25HP, 1700RPM, 115/230V unit has rugged steel frame, double sealed ball bearings, corrosion resistant expoxy finish, 1 extended thru bolts and permanent spit capacitor.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERCHC3413A
  • HORSEPOWER1/4
  • MOTOR RPM 60Hz1700
  • VOLTAGE115/230
  • PHASE1
  • FRAME48Z
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONAutomatic
  • RATED RPM1700
  • MOUNTINGResilient
  • FULL LOAD AMPS4.8/2.4
  • SHAFT DIAMETER0.5
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6206
  • OPPOSITE END BEARING SIZE6203
  • INSULATION CLASSB
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH11.35
  • is_motorYes
  • LENGTH INCHES14
  • WIDTH INCHES11.125
  • HEIGHT INCHES10
  • WEIGHT LBS22
  • RPM RANGE1501-1700
  • FL EFFICIENCY54
  • FL AMPS4.8/2.4
  • POLES4
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
