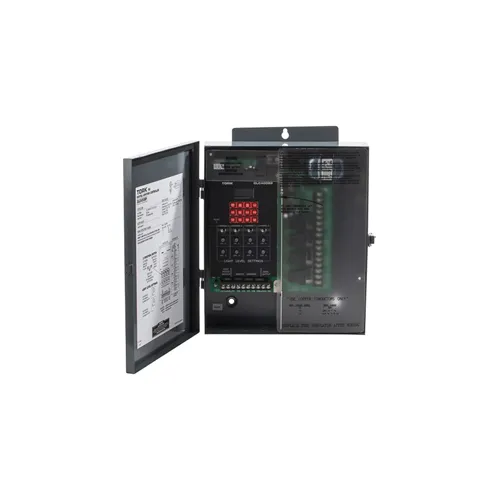

NSI TORK® DLC400BP 365 Day Lighting Panel Astronomic with Memory Module Photosensor & Inputs, 4CH, 30A, 120-277V, SPDT, Indoor Metal Enclosure
The DLC400BP is a multi-voltage, dedicated 4 zone lighting controller with photocell input in a NEMA 3R enclosure. The unit has heavy duty 30 Amp SPDT contacts, thereby eliminating the need for costly contactors in most applications. Each zone can be actuated by 1) the photosensor, or 2) time of day, or 3) a combination of both. Light level settings at which loads turn ON and OFF as well as time schedules are assigned independently to each zone, with the additional capability of remote override inputs from external switches or local override at the keypad.
Share
Spec Sheet
BESTSELLER
NSI TORK® DLC400BP 365 Day Lighting Panel Astronomic w/Memory Module Photosensor & Inputs, 4CH
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$2,399.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 10.5 in |
| Width | 6 in |
| Depth | 5 in |
Product Details
| Type | 365 Day |
| Number of Channels | 4 Channel |
| Voltage | 120/(208-240)/277 V |
| Color | Tan |
| Manufacturers Part Number | DLC400BP |
| Key | 147130 |
| Contact Type | Maintained |
| Brand | Tork |
