Nachi

Model # :WBB725252

MPN #: 5200-2NS

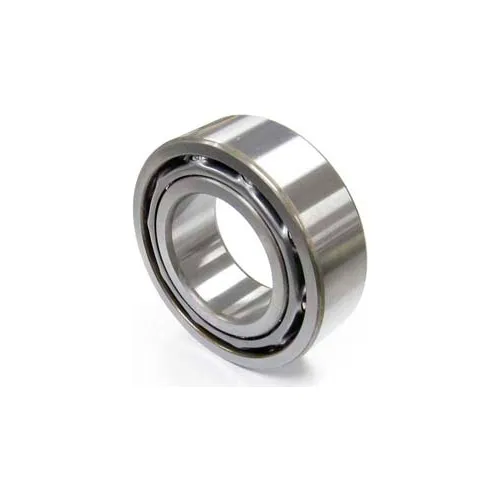

Nachi, 5200-2ns, Double Row Angular Contact, Double Sealed, 10mm Bore X 30mm Od X 14.3mm W-Min Qty 3

Product Description
NACHI 5200-2NS, Double Row Angular Contact, Double Sealed, 10MM Bore x 30MM OD x 14.3MM W

Double Row Angular Contact Ball Bearings are functionally same as two single row angular contact ball bearings mounted back-to-back except they have only one inner ring and one outer ring. These bearings take heavy radial loads, and axial loads equally in either direction.

PRICE
$47.95

Min. purchase quantity is 3
3
3
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width14.3 mm
Bore Diameter10 mm
Static Load Rating4000 N
ToleranceISO Class 0
Diameter30 mm

Product Details

Dynamic Load Rating (N)7300
Static lbf4,000 lb-ft
Series5200
Radial ClearanceNormal
Contact Angle20°
Manufacturers Part Number5200-2NS
Grease Max Speed18,000 rpm
BrandNachi
