Nachi

Model # :WBB725258

MPN #: 5202-2NS

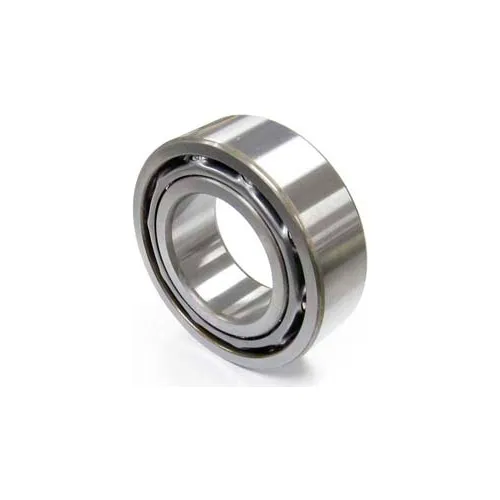

Nachi, 5202-2ns, Dbl Row Angular Contact Bearing, Dbl Seal, 15mm Bore X 35mm Od X 15.9mm W-Min Qty 3

Product Description
NACHI 5202-2NS, Double Row Angular Contact Bearing, Double Sealed, 15MM Bore x 35MM OD x 15.9MM W

Double Row Angular Contact Ball Bearings are functionally same as two single row angular contact ball bearings mounted back-to-back except they have only one inner ring and one outer ring. These bearings take heavy radial loads, and axial loads equally in either direction.

PRICE
$38.95

Min. purchase quantity is 3
3
3
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width15.9 mm
Bore Diameter15 mm
Static Load Rating7200 N
ToleranceISO Class 0
Diameter35 mm

Product Details

Dynamic Load Rating (N)11900
Contact Angle20°
Series5200
Manufacturers Part Number5202-2NS
Radial ClearanceNormal
Grease Max Speed14,000 rpm
BrandNachi
