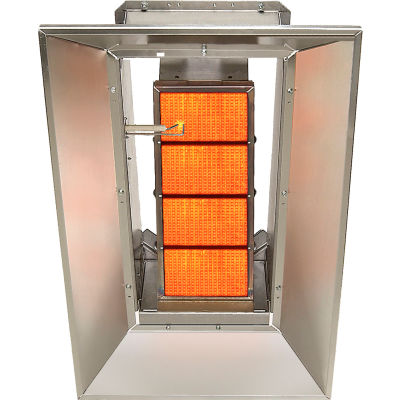

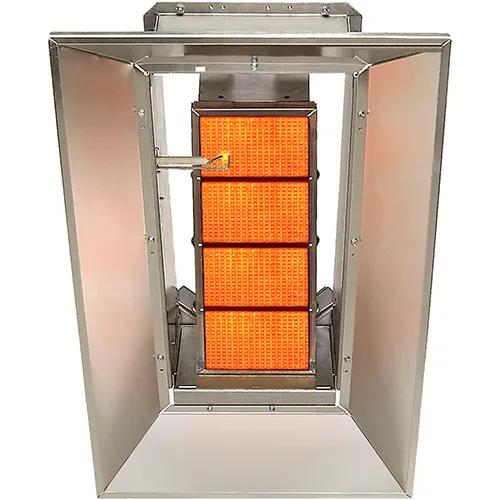

Ideal for spot heating large areas. Dimpled tile assembly offers increased radiant efficiency. Made with corrosion resistant aluminized steel. Aluminum reflectors maximize radiant output. Features energy efficient direct spark ignition system and gas shut-off safety control. Allows angled mounting up to 30°. 120V supply required. CSA certified. 1 Year Limited Warranty.
Note: Installation and service must be performed by a licensed contractor and must conform to local codes. In absence of local codes, installation must comply with National Fuel Gas Code ANSI Z223.I (also known as NFPA 54) or CGA B149 installation codes. Requires 4CFM per 1000 BTU/hr of Mechanical Ventilation of the total installed capacity. Read Installation and Operating Instructions prior to purchase. Not certified or approved for RESIDENTIAL use.
- BRAND SunStar
- WIDTH INCHES 26-1/2
- DEPTH INCHES 17-3/4
- HEIGHT INCHES 7-3/4
- CONNECTION SIZE INCHES 1/2
- MIN. CLEARANCE TO COMBUSTIBLE 30 DEGREE ANGLE INCH Front 37, Rear 31, Below 73
- MIN. CLEARANCE COMBUSTIBLES AT HORIZONTAL INCH Sides 31, Ceiling 37, Below 73
- ASSEMBLY Assembled
- CONSTRUCTION Aluminized Steel / Aluminum Reflectors
- MANUFACTURER PART# SG4-N
- BTU HIGH 40000
- VOLTAGE 120
- GAS INLET PRESSURE MAX. WATER COLUMN INCHES 14
- GAS INLET PRESSURE MIN. WATER COLUMN INCHES 7
- NUMBER OF BURNERS 1
- FUEL TYPE Natural Gas
- IGNITION TYPE Direct Spark
- LIMITED WARRANTY YEARS 1
- BURNER PRESSURE W.C. INCHES 6
- CONNECTION TYPE NPT Female
- AMPS HIGH 0.4
