Neoprene And Cork Pad 4" X 4" X 1"

For extra heavy duty vibration isolation. Dampens vibration from compressors, blowers, AC units and more. Designed for extra heavy duty use. Made from steel plate over waffle pad with 3/4" diameter bolt hole. Includes neoprene and steel isolation washers. Distributes concentrated loads effectively.

Neoprene Mounting is a better isolator than isolation pads because they are thicker (taller) and provide more deflection. Top bolts and washers are provided for bolting to the equipment. The neoprene friction covering on the bottom generally eliminates bolting to the structure. This excellent all-purpose oil resistant mounting is used under compressors, blowers, air conditioning equipment, pumps, machine tools, transformers, etc. Used in compression only. Max Load 300-600 LBS. 3-7/8"L x 2-5/16"W x 1-7/8"H Overall Dimensions.

Bridge Bearing quality Natural Rubber isolation pad is used when higher load capacities are required. Designed to deflect 1/8" at maximum load. Max Load 7900 LBS. 6"L x 6"W x 1"H Overall Dimensions.

The simplest and most inexpensive way to isolate vibration shock and reduce noise level is to install machinery and equipment on 2 sided waffle design VibraSystems Neoprene pads. For fast easy installation the pads can be cut to size; allow 1/2" margin on all sides to provide firm footing. Lift the machine to be isolated and slide the vibration isolating pads under each mounting point. The molded waffle design allows material expansion without loss of stability providing maximum resilience and minimal creep. Features: VibraPads are resistant to oil and solvents Firmly anchors the machine ...

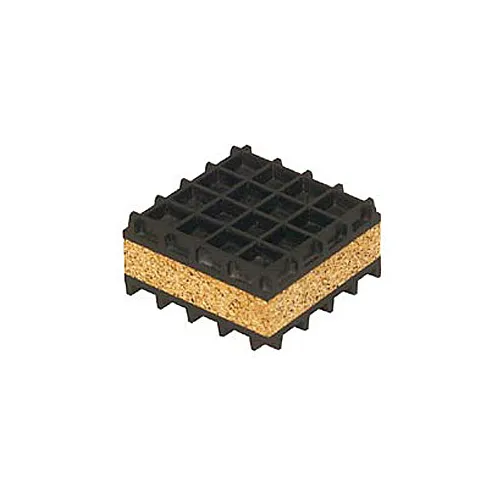

Rubber Cork Pads are designed to reduce problems in industry caused by vibrations and structure borne noise. Cork with ribbed pads on either side provides additional isolation and positive grip. Features: Alternate High-Low Rib construction Excellent sound attenuation capability Simple field installation
