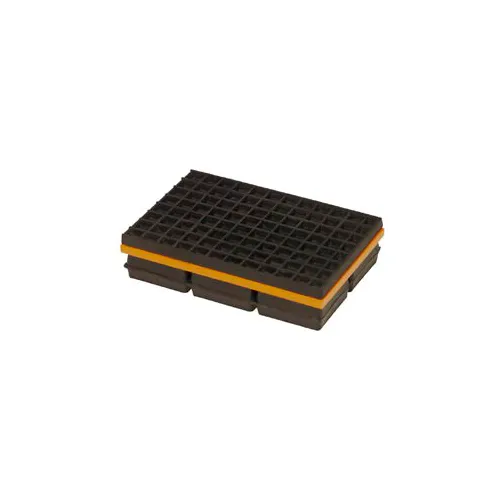

Mason Industries WMSW6X4 Super W Pad - Neoprene And Steel Pad With Friction Pad 6" X 4" X 1 1/4"

Neoprene Mounting is a better isolator than isolation pads because they are thicker (taller) and provide more deflection. Top bolts and washers are provided for bolting to the equipment. The neoprene friction covering on the bottom generally eliminates bolting to the structure. This excellent all-purpose oil resistant mounting is used under compressors, blowers, air conditioning equipment, pumps, machine tools, transformers, etc. Used in compression only. Max Load 300-600 LBS. 3-7/8"L x 2-5/16"W x 1-7/8"H Overall Dimensions.

Neoprene Mounting is a better isolator than isolation pads because they are thicker (taller) and provide more deflection. Top bolts and washers are provided for bolting to the equipment. The neoprene friction covering on the bottom generally eliminates bolting to the structure. This excellent all-purpose oil resistant mounting is used under compressors, blowers, air conditioning equipment, pumps, machine tools, transformers, etc. Used in compression only. Max Load 60-125 LBS. 3-3/16"L x 1-5/8"W x 1-1/2"H Overall Dimensions.

"ECRMP" Easy-Cut rubber mounting pad. The primary vibration absorption material is Neoprene. ECRMP pads feature anti-skid surfaces through suction cup construction. Features: Material - Neoprene Thickness 0.825 200 PSI - Maximum Load 20% Deflection at Max. Load Waffled Design Can be cut in 2" increments

Stud type leveling mount fills a need for a greater leveling range and are recommended for as much as 1" of lift. A thick neoprene base resists oil, provides friction and isolates impact and vibration. Max Load 50-250 LBS. 2-3/8"L x 2-3/8"W x 3/4"H Overall Dimensions.

Furnished with 3/8-16 or 1/2-13 tapped holes or studs to accommodate large or small holes in the machinery leg. Neoprene resists oil, oxygen and ozone. Upper plate provides uniform mounting loading. May be bolted directly without leveling for economy. Without glide cup, friction keeps equipment in place. Max Load 250 LBS. 2-1/4"L x 2-1/4"W x 7/8"H Overall Dimensions.
