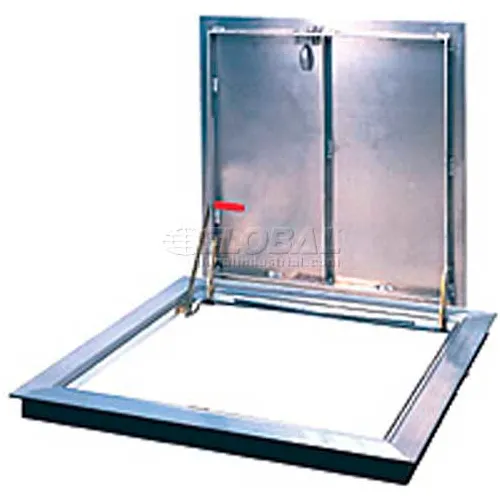

Bilco® Non-Drainage Angle Frame K-2, Single Leaf, Aluminum, 30"W x 30"H Door Opening

Bilco® Non-Drainage Angle Frame K-4, Single Leaf, Aluminum, 36"L X 36"W Generally for interior use or exterior applications where water or liquid infiltration into the access opening is not a concern. Type K floor access doors feature aluminum construction, 150 PSF reinforcing for pedestrian applications, and engineered lift assistance for easy one-hand operation. Available in a number of standard single leaf and double leaf (Type KD) sizes Cover reinforced for 150 PSF loading. Torsion rods counterbalance the cover for smooth, easy, one hand operation.

Walk Through Access Door for access to duct work & air handling units. Aluminum Frame w/ Galvanized Steel Door Panel. " L "Handles ship loose with the unit. 1-15/16" (w) x 1-1/2" deep extruded aluminum frame w/ mitred corners. 2 Latches. Mill Finish. 32-1/2"W x 38-1/2"H Outside Flange Dimensions. 30 W x 1-5/8"D x 36 H Return Flange Dimensions.

Bilco® Drainage Channel Frame J-4AL, Single Leaf, 316 Stainless Steel Hardware, 36"L X 36"W Constructed with a channel frame for use in exterior applications or in those situations where there is concern of water or other liquids entering the access opening. Type J-AL floor access doors feature aluminum construction, type 316 stainless steel hardware, and engineered lift assistance for easy one-hand operation. Available in a number of standard single leaf and double leaf (Type JD-AL) sizes Fully enclosed compression springs counterbalance the cover for smooth, easy, one hand operation.

Constructed of a 24 gauge galvanized steel double panel door and frame with mill finish for long lasting durability. 1/8" thick x 1/2"W closed cell neoprene gasketing between insulated door and frame assures tight seal without obstruction in air system. Frame includes 5/8" notched knock over tabs. Door panel filled with 2" fiberglass insulation compressed into 1" and includes aluminum continuous piano hinge. 24" W x 24" H outside flange dimensions. 22-3/4" W x 22-3/4" D x 5/8" H return flange dimensions. Color finish is Silver . Number of latches is 2 .

Bilco® Drainage Channel Frame JD-3AL, Double Leaf, 316 Stainless Steel Hardware, 72"L X 48"W Constructed with a channel frame for use in exterior applications or in those situations where there is concern of water or other liquids entering the access opening. Type J-AL floor access doors feature aluminum construction, type 316 stainless steel hardware, and engineered lift assistance for easy one-hand operation. Available in a number of standard single leaf and double leaf (Type JD-AL) sizes Fully enclosed compression springs counterbalance the cover for smooth, easy, one hand operation.
