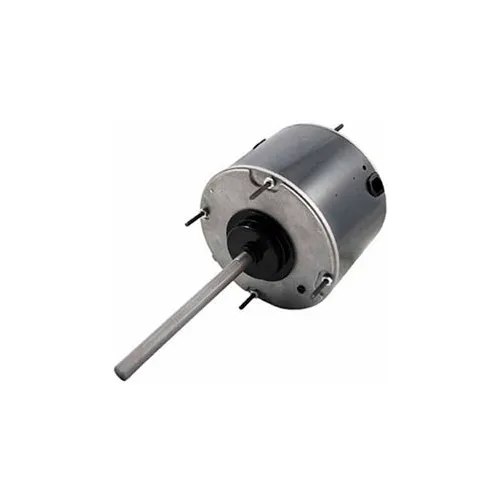

Century FH1076, Open Fan Motor 1075 RPM 460 Volts 3/4 HP

Century Single Phase Condenser Fan Motor - 460/200-230 Volts 1075 RPM Automatic Overload Class B moisture resistant insulation Double Sealed Ball Bearing Permanent Split Capacitor Positioning lugs for easy belly-band mounting Quick-connect design Reversible Rotation 1.0 Service Factor 5/8 inch diameter shaft with both keyway and flat 1 inch minimum extended thru bolts 56 Frame 60 HZ Single Phase 60º C ambient

Century 9605A, Direct Drive Blower Motor, PSC 3.9 Amps Capacitor: 20MFD@370VAC Required Thermal Protection: Automatic Maximum Ambient Temp: 40 C Duty Cycle: Continous Reversing plug, Includes mounting rings, 23in leads, No extended thru-bolts

70ºC (158ºF) max ambient UL/CSA approved Class F insulation High-temperature UL/CSA approved overload protector 3-Year Limited Warranty from date of manufacture date code, or 2 years from the date of installation

Century, Fan and Blower, Permanent Split Capacitor, 3/4 hp, 1075 rpm, 1 speed, 115/230v, TENV, 7.3/3.7 amp, Counterclockwise Lead End, Ball/Ball bearings

70ºC (158ºF) max ambient UL/CSA approved Class F insulation 3-Year Limited Warranty from date of manufacture date code, or 2 years from the date of installation Energy-efficient PSC and three phase design
