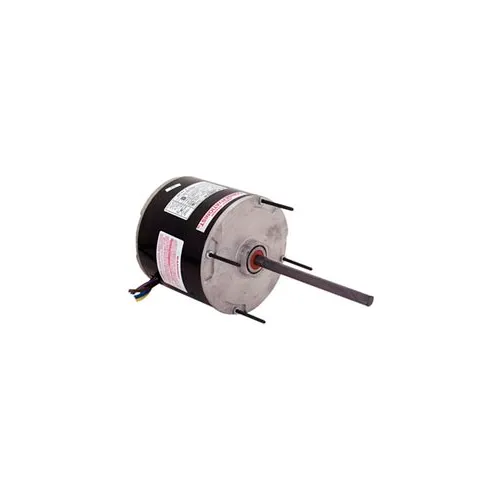

Century F107SV1, 5-5/8" Outdoor Ball Fan Motor SV1 208-230 Volts 1075 RPM 3/4 HP

Century 5 5/8" Split Capacitor Condenser Fan Motor - 208-230 Volts 1120 RPM Permanent Split Capacitor 48Y Frame Stud / Belly Band Mounting Automatic Overload 60 HZ Single Phase

Energy efficient Different capacitor / Speed combinations Designed for 370V capacitor (not furnished) Extended thru bolts Class B insulation Continuous duty, air over Mounts by belly band, thru bolts or shell holes Rheem mounting holes in shell Permanent Split Capacitor Ball Bearings 48 Frame 60 HZ Automatic Overload Totally Enclosed Single Phase 60ºC ambient

70ºC (158ºF) max ambient UL/CSA approved Class F insulation High-temperature UL/CSA approved overload protector 3-Year Limited Warranty from date of manufacture date code, or 2 years from the date of installation

Century 5 5/8" HeatMaster Motor - 208-230 Volts 1075 RPM 70ºC (158ºF) max ambient UL/CSA approved Class F insulation High-temperature UL/CSA approved overload protector 3-Year Limited Warranty from date of manufacture date code, or 2 years from the date of installation Energy-efficient PSC design Water-resistant reversing plug Double sealed ball bearing, or dependable all-angle sleeve bearings All-angle mount Mounts by belly band, adjustable extended thru-bolts, or Rheem mounting holes, with screws supplied Lead length 36 60 HZ 48 Frame Totally Enclosed Single Speed Continuous duty, air ...

Automatic Overload Class B moisture resistant insulation Double Sealed Ball Bearing Permanent Split Capacitor Positioning lugs for easy belly-band mounting Quick-connect design Reversible Rotation
