This P70 Series of controls employs a set of switch contacts that are opened and closed by the movement of pressure actuated bellows. The load-carrying contacts provide direct control of AC motors within the control rating. Note the electrical rating chart for specific models. These controls are available with either close high-open low, open high-close low, or SPDT contact action.
Share
Spec Sheet

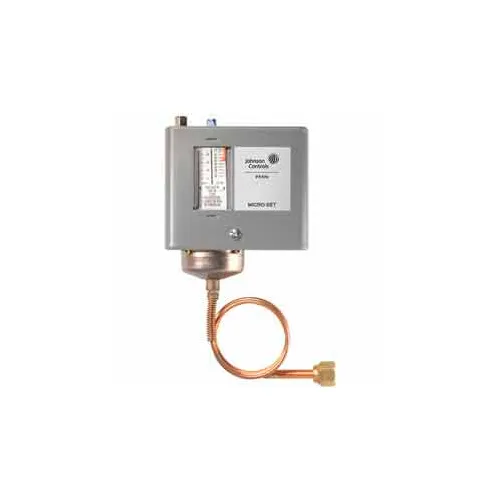

P70AA-1C Single Pole Low Pressure All Range Control
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$179.95
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Capillary Length | 3 ft |
Product Details
| Pressure Connector | 1/4 in. Flare Nut |
| Max Operating Pressure | 325 psig (2241 kPa) psi |
| Switch Action | Close High - Open Low |
| Brand | Johnson Controls |
Warranty
| Warranty | 1 yr |
