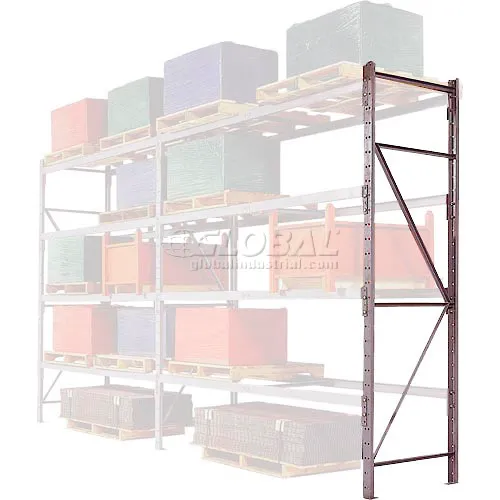

Pallet Rack Upright Frame - 3" Channel 42"D x 120"H

Steel King® SK3000® Structural Channel Pallet Rack - 42"D X 120"H Upright - BCF3L042120F03PB Steel King upright frame columns consist of 3" structural channel steel. Steel thickness, especially in corner sections, enables greater resistance to fork truck impact damage, while increasing load carrying capacity and resistance to seismic forces. Upright frames are punched on 4" vertical centers. Beam connections are specially punched to allow for vertical adjustability in 2" increments. Diagonal and horizontal braces are used throughout the entire frame. Braces are 1.5"x1.5" structural ...

Steel King® Seismic Pallet Rack Upright - 42"W X 96"H Increasingly, building codes require that pallet racks meet seismic standards. In practical terms, this means that pallet rack systems must be strong and durable enough to withstand seismic forces. Weight capacity based on 36in vertical beam spacing. Features: Meets seismic requirements in some areas Constructed of 14-gauge steel framework and beams with additional cross braces Uprights made from heavy duty 3" x 3" steel tubing Seamless closed tube fully welded construction Oversized 5" x 7" base plates welded to upright frames Safety ...

Penco Pallet Rack Upright Frames are furnished completely fabricated, welded into rigid units. Standard finish for upright frames is 028 Gray baked enamel. We recommend that all upright frames be securely anchored to the floor for safety. Seismic conditions and local codes may require anchors other than the Penco 1/2"-13 x 3 3/4" wedge anchor be used. We suggest you check with local code officials about anchoring as many jurisdictions have approved different anchors.

✓14-gauge steel uprights ✓27600 lb. total rated capacity ✓ Teardrop connection style GLOBAL TEAR DROP PALLET RACK Welded Upright Frame Welded upright frames are made with 14 gauge steel. Punched on 2" centers for easy beam adjustment. Long lasting baked-on enamel finish. To select an upright beam determine the total weight of all pallets for each pair of upright frames. Add the height of all pallet loads, beam height, allowing 4" to 8" clearance between the top of the load and the bottom of the beam above. The top beam should be a minimum of 6" less than the ...

✓ 13-gauge steel uprights ✓ 33000 lbs. total rated capacity ✓ Teardrop connection style Improve storage in your warehouse, retail store, or manufacturing facility with the Global Industrial™ Bolted Pallet Rack Upright Frames. These bolted teardrop upright frames come partially assembled for easy customer set-up, allowing for more flexible configuration and making it easier than ever to adapt to new storage environments. All uprights are equipped with 8.8 grade Tensile Strength Bolts, with limited threads, to prevent over-tightening. The standard, ...
