Multifan

Model # :WB245815

MPN #: V6E63K2M71100

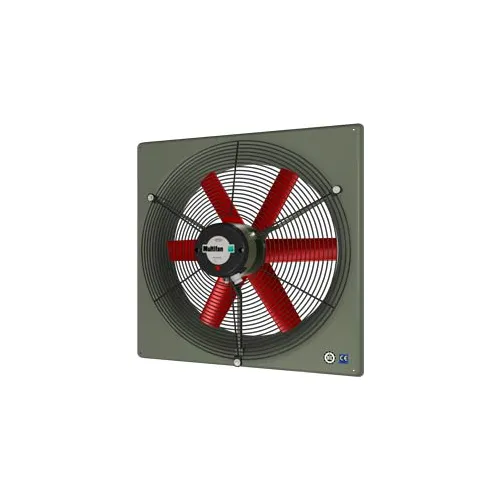

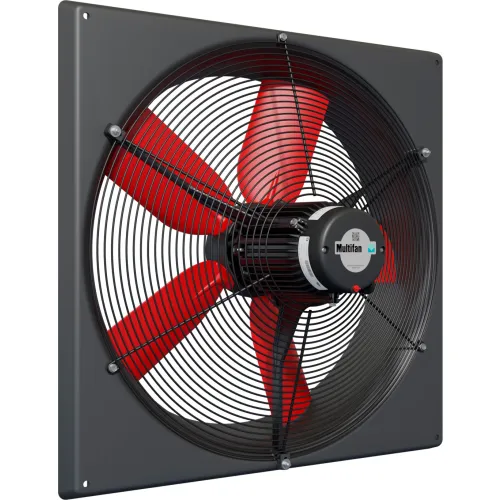

Multifan Panel Agricultural Fan 24" Diameter V6E63K2M71100 Single Phase 120V With Grill

Product Description
HEAVY DUTY PANEL FANS V6E63K2M71100
24" Diameter Panel Fan - Single Phase 120V
Multifan Panel fans serve as an exhaust fan or fresh air intake and can be mounted in a wall in either horizontal or vertical position. Multifan Panel fans are used for agricultural applications such as ventilation in greenhouses, pork,- dairy- and poultry houses and industrial applications such as ventilation in factories or buildings. The fans are speed-controllable and engineered for continuous operation in highly corrosive environments, outdoor use and wet applications. Glass-filled, high impact polypropylene fan blades are powered by a wash down, severe duty ball bearing motor. Sealed motor is Class F insulated and features automatic thermal protection for low maintenance. Motor is housed in die cast aluminum and offers a labyrinth seal between housing and impeller guard to keep out moisture. Fan supports absorb sound and vibration for low noise operation. Vacuum formed, heavy duty fiberglass frame features corrosion resistant wire guards on motor side for safety. UL507 certified for outdoor use. C-UL recognized. 3 Year Limited Warranty. Horsepower rating based upon maximum speed/load.

PRICE
$1,229.00

1
1
Ships in 4 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length31-1/2 in
Depth15-1/2 in
Height32 in
Fan Diameter24 in

Product Details

Assembly RequiredNo
RPM1000 rpm
CFM7110 CFM
Horsepower15/16 HP
Amperage5.60 A
Drive TypeDirect Drive
Fan TypeStandard Performance
RPM High1,000 rpm
Motor TypeTotally Enclosed Air Over
Voltage120 V
CFM High7110 CFM
MaterialPolypropylene/Fiberglass
Phase1
DescriptionPanel Fan
Indoor/OutdoorOutdoor
Decibels55
BrandMultifan

Compliance & Certifications

CertificationsUL507, C-UL
