Insul-Sheet® S2s 1/4" X 36" X 48" - Pkg Qty 24

Item #: WBB307554

☆ ☆ ☆ ☆ ☆ (1)

Enter zip code for delivery date estimate

Shipping to 10465 change

$17.50 ea.

Price: $420.00_{/ Pkg of 24}

Save $21.00 with 5% off when you use your Global Industrial Credit Card.

Save 5% Apply Now

Quantity

Customers Also Viewed

Insul-Sheet® S2s 1/2" X 36" X 48"

Insul-Sheet® S2s 1" R4 X 36" X 48" - Pkg Qty 6

K-Flex Elastomeric Foam Tape, 1/8" Thick X 2" Wide X 30' Per Roll

K-Flex 6RXLO048078 6' Insul-Lock DS Pipe Insulation 3/4ID x 1/2"Thick W/Overlap

Insul-Tube® 6'L, 1/2" Wall Thickness, 5/8" Nom. I.D

Global Industrial™ Outdoor Plastic Ashtray, 1-1/2 Gallon Capacity, Black

Laboratory Grade PVC Tubing- 1"ID x 1-1/4"OD x 25 ft.

FDA Silicone Tubing-3/4"ID x 1"OD x 25 ft.

◄

►

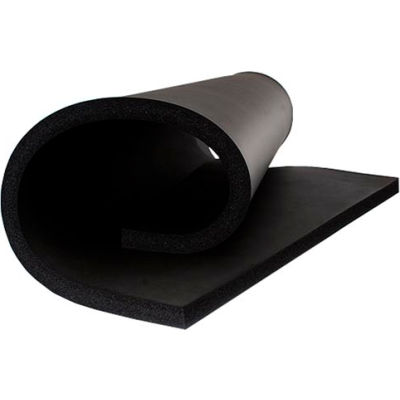

Insul-Sheet® S2S 1/4" x 36" x 48"

INSUL-SHEET® insulation is an environmentally friendly, CFC-free, flexible elastomeric thermal insulation. INSUL-SHEET® insulation is used to retard heat gain and prevent condensation or frost formation on cold equipment, tanks, vessels, ducts, or large O.D. pipes. It also effectively retards heat loss when used on hot equipment, ducts, or large pipes. INSUL-SHEET® can be used as duct covering. Thickness has been calculated to control condensation on cold surfaces. For optimum performance, outdoor applications require 374 Protective Coating or other recommended protective coating, cladding or jacketing.

SPECIFICATION COMPLIANCE ASTM C 534 Type 2 (Sheet), Grade 1 ASTM D 1056-00-2C1 New York City MEA 186-86-M Vol. IV USDA Requirements STC = 17 per ASTM E 90. UL 94-5V Flammability Classification (Recognition No. E300774) ASTM E 84 2" 25/50-tested according to UL 723 and NFPA 255 Complies with requirements of CAN/ULC S102-03. NFPA No. 101 Class A Rating. Meets requirements of NFPA 90A/B Sect. 2.3.3 for Supplementary Materials for Air Distribution Systems. Meets requirements of UL 181 sections 11.0 and 16.0 (Mold Growth/Air Erosion). Meets requirements of ASTM C 411 (Test Method for Hot Surface Performance of High Temperature Thermal Insulation). MIL-P-15280, Form S (Sheet). R8 Sheet meets R-value requirements of the International Energy Conservation Code for Outdoor Ductwork.
Sold in package quantity of 24, priced each.

Product Specifications

BRANDK-Flex USA
MANUFACTURERS PART NUMBER6RSX3X4028
PACKAGE QUANTITY24
WIDTH INCHES36
LENGTH FEET4
THERMAL CONDUCTIVITY 90°F MEAN.27 BTU-in/hr-ft²-°F
THICKNESS INCHES1/4
SMOKE DEVELOPED UP TO 1/2" THICKNESSNot Greater Than 50
OPERATING TEMPERATURE RANGE-297°F - 220°F
FLAME SPREAD UP TO 1/2" THICKNESSNot Greater Than 25
CHEMICAL/ SOLVENT RESISTANCEGood
DESCRIPTIONSkin 2 Sides
MILDEW RESISTANCE/ AIR EROSIONPass
WATER VAPOR PERMEABILITY DRY CUP<0.06
DENSITY3-6 PCF
WATER ABSORPTION %<0.20 by Volume
OZONE RESISTANCEPass
THERMAL CONDUCTIVITY 75°F MEAN.25 BTU-in/hr-ft²-°F

Customer Review

4.0

☆ ☆ ☆ ☆ ☆

5 Star
0
4 Star
1
3 Star
0
2 Star
0
1 Star
0

Sort by:

Most Recent Reviews

Most Recent Reviews
Highest Rated Reviews
Lowest Rated Reviews

Reviewer: Anonymous

Date: February 25, 2014

☆ ☆ ☆ ☆ ☆
ADDITIONAL INSULATION SUPPLIER

Your review:
We were looking for an additional supplier Nomaco insulation. Since Global was already an approved supplier we gave them a shot. Global has some of the lowest prices on insulation. The delivery portion of there shipment took a little longer than we liked. The packing list was clear and even included our part number and the number of feet sold. I rate them 4 out of 5 starts. Ask for Loudes, she is a great product manager.
