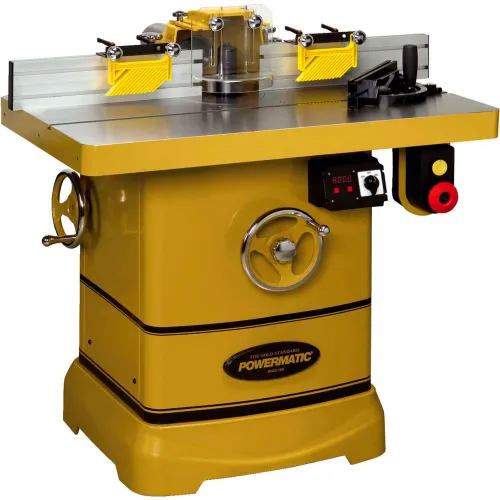

Powermatic 1280101C Model PM2700 5HP 1-Phase 230V Shaper W 30" x 40" Table & Spindle Height DRO

Powermatic 1280101C Model PM2700 5HP 1-Phase 230V Shaper W 30" x 40" Table & Spindle Height DRO

Item #: WBB57901

Not Yet Rated

Free Shipping

$4,668.57 up to 19% OFF

Price: $3,799.99

$633.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.
We will notify you when this product is back in stock.

Customers Also Viewed

This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30 x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.

Features:

  • Integrated caster system built into the cast iron base for instant shop mobility
  • Spindle height digital readout for making fine incremental adjustments on multiple passes
  • Heavy duty 30 x 40" precision ground tabletop for smooth stock feeding
  • Convenient quick lock belt tensioning for easy speed adjustment
  • Industrial fence system with fine adjust dials for more precise positioning
  • 5HP totally enclosed motor offers plenty of power
  • Two spindle speeds (reversible) for a variety of work
  • Table predrilled and tapped for feeder mounting in two locations
  • Fence has dual featherboards for work holding

  • PREWIRED VOLTAGE 230
  • ELECTRIC CONTROLS Magnetic Starter
  • MOTOR VOLTAGE 230
  • MOTOR PHASE 1
  • MOTOR HORSEPOWER 5
  • DUST COLLECTION MINIMUM REQUIRED (CFM) 600
  • DUST PORT OUTSIDE DIAMETER INCHES (FRONT) 4
  • TABLE SIZE INCHES (L X W) 40 X 30
  • TABLE HEIGHT FROM FLOOR INCHES 35-1/2
  • SPINDLE SPEED (RPM) 7500/10000
  • AMPS 22
  • BRAND Powermatic
  • MANUFACTURERS PART NUMBER 1280101C
  • TYPE Shaper
  • SPINDLE TRAVEL INCHES 4
  • MODEL PM2700
  • FENCE SIZE INCHES (L X H) 18-3/4 X 4-7/8
  • VOLTAGE 230
  • APPROVALS OR CERTIFICATIONS CSA Certified
  • MAXIMUM SPINDLE DIAMETER INCHES 1-1/4
  • HEIGHT INCHES 45
  • LENGTH INCHES 40
  • WIDTH INCHES 37
  • TABLE INSERT OPENING DIAMETER INCHES 2-1/2 X 4-1/8 X 5-3/4
  • TABLE OPENING DIAMETER INCHES 7-3/8
  • SPINDLE SIZE UNDER NUT INCHES 3/4, 1, 1-1/4
  • SPINDLE DIAMETER INCHES 3/4, 1-1/4
  • REVERSIBLE Yes
  • MANUFACTURERS LIMITED WARRANTY YEARS 5
