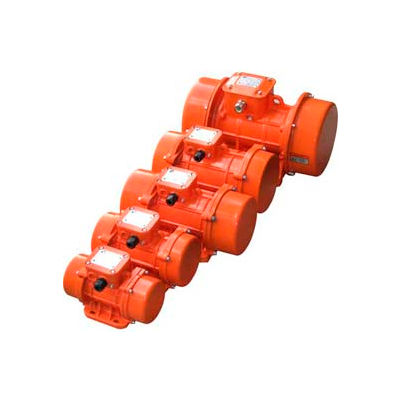

OLI Vibrators Standard Electric Vibrator MVE 400/4, 1800RPM, 3 Phase, 60HZ, 230/460V, 4Pole
The range of MVE-type External Electric Vibrators is the result of extensive experience in vibrating technology focused on a wide variety of industrial applications worldwide. Typical applications for the MVE-type External Electric Vibrators include: material flow aids used on bins and hoppers, power plants for screening, conveying, and feeding as well as variety of emptying, cleaning, detaching, compacting, and sorting applications. Many of the world's most notable manufacturers in industries from asphalt, agriculture, chemicals, concrete, construction, food processing, foundries, mining, recycling and water treatment trust OLI vibrators to meet their strict performance standards. Because of this, each motor is individually tested for mechanical and electrical performance before shipping to the customer. In addition to high quality standards, benefits of OLI Electric Vibrators are: long bearing life, low noise output, and low maintenance requirements. OLI USA is an ISO:9001 company headquartered just outside of Atlanta in Duluth, GA. Fifty years of experience and membership in a large, international group of industrial equipment, manufacturing companies have positioned OLI as a world leader within the vibrating motor industry.
The range of MVE-type External Electric Vibrators is the result of extensive experience in vibrating technology focused on a wide variety of industrial applications worldwide. Typical applications for the MVE-type External Electric Vibrators include: material flow aids used on bins and hoppers, power plants for screening, conveying, and feeding as well as variety of emptying, cleaning, detaching, compacting, and sorting applications. Many of the world's most notable manufacturers in industries from asphalt, agriculture, chemicals, concrete, construction, food processing, foundries, mining, recycling and water treatment trust OLI vibrators to meet their strict performance standards. Because of this, each motor is individually tested for mechanical and electrical performance before shipping to the customer. In addition to high quality standards, benefits of OLI Electric Vibrators are: long bearing life, low noise output, and low maintenance requirements. OLI USA is an ISO:9001 company headquartered just outside of Atlanta in Duluth, GA. Fifty years of experience and membership in a large, international group of industrial equipment, manufacturing companies have positioned OLI as a world leader within the vibrating motor industry.
Product Specifications
- BRANDOLI Vibrator
- CONSTRUCTIONAluminum Frame
- VOLTS230/460
- PHASE3
- UNBALANCE LBS. @ 50Hz6.7
- DESCRIPTIONStandard Electric Vibrator
- MANUFACTURERS PART NUMBERMVE 400/4
- INPUT POWER HP @ 50Hz0.21
- MAX FORCE IN LBS. @ 60Hz432
- MAX FORCE IN LBS. @ 50Hz428
- UNBALANCE LBS. @ 60Hz4.7
- AMPS MAX Y @ 60Hz/460V0.5
- AMPS MAX Y @ 50Hz/400V0.49
- INPUT POWER HP @ 60Hz0.23
- II3 D TEMP CLASS C100
- Class II Div. 2 TEMP CLASS (T)T4
- VIBCO CROSS REFERENCE4P-700-3
- LA/IN @ 60Hz2
- LA/IN @ 50Hz2
- RPM1800
- WEIGHT @ 60 Hz26
- WEIGHT @ 50 Hz26
- CABLE GLANDEM20
- MOTORAC
- POLES4
- HZ60
- AMPS MAX Y0.50
- WARRANTY2 Year
- CERTIFICATIONSCE, UL, CSA, Class 2 Div 2, And GOST Certifications
