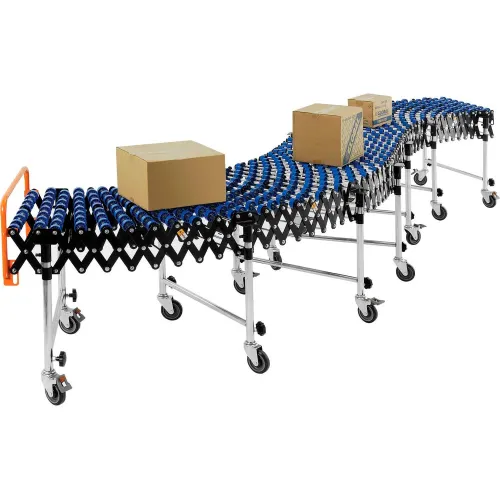

Global Industrial™ Portable, Flexible & Expandable Conveyor W/ Skate Wheels, Expands 6'2"-24'8"

Global Industrial™ Portable, Flexible & Expandable Conveyor W/ Skate Wheels, Expands 6'2"-24'8"

Item #: WB168111

(4)

Ships same day. ? Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

Enter zip code for delivery date estimate

Shipping to 10465 change

  • Nylon
  • Steel

Nylon

Price: $1,612.00

$268.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Global Industrial™ PORTABLE FLEXIBLE & EXPANDABLE CONVEYOR

Retracts to 6'2" to Save Space!

Instantly set up conveyor lines for shipping, receiving, assembly and packaging areas. Flexible, portable gravity conveyor expands from 6'2" to 24'8". Rugged 5/16" steel axles and self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow. 175 lbs. per foot capacity. 1-1/4" (compressed) to 4" (expanded) axle centers for a 7" minimum package size. Seven zinc plated telescopic legs with 4" thermoplastic rubber swivel casters adjust independently from 31-3/4" to 40-1/2" to achieve maximum gravity flow and create banked curves. Units bend around a 27" radius. End legs have locking brakes. Includes convenient box stop and hook couplers to connect additional conveyors. Assembles easily. 1 Year Limited Warranty.

Click here to see our full selection of Portable Conveyors, Flexible Conveyor and Expandable Conveyors.

  • WIDTH INCHES 24
  • CAPACITY LBS 175 lbs. per ft.
  • ADJUSTABLE LENGTH 6'2" to 24'8"
  • ASSEMBLY Unassembled
  • AXLE CENTER INCHES 4
  • BRAND Global Industrial
  • CONSTRUCTION Steel
  • INSIDE RADIUS INCHES 27
  • LEG SETS PER UNIT 7
  • LIMITED WARRANTY 1 Year
  • MAXIMUM LEG HEIGHT INCHES 40-1/2
  • MINIMUM LEG HEIGHT INCHES 31-3/4
  • SKATE WHEEL OR ROLLER CONSTRUCTION Nylon
  • SKATE WHEELS PER AXLE 8
  • TYPE Skate Wheel
  • WEIGHT LBS 474
Customer Review

5.0

  • 5 Star

    4
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: JOE

    Date: April 06, 2021

    Great quality, great value
    Your review:
    This conveyor is well made and handles the demands placed upon it. Factor in the low price point along with the quality and it becomes an easy decision to make. I will buy it again should the need arise.
  • Reviewer: DARRYL

    Date: January 07, 2021

    Skate conveyor
    Your review:
    Awesome skate conveyor. No issues
  • Reviewer: Anonymous

    Date: May 29, 2018

    Time Saver
    Your review:
    Our efficiency level rose with the addition of this conveyor. Floor loaded trailers are quickly unloaded saving time and money.
  • Reviewer: Anonymous

    Date: March 12, 2018

    great time saver
    Your review:
    We use it for totes, and line up the orders for the drivers. It is much easier for them to load the orders onto the truck from height we designate. It easily moves around if we need more or less space.
Product Q & A

There are 2 questions and 2 answers for this product.

  • How much assembly is required? Estimated time to assemble?

    Question Asked By: Archie, April 08, 2020

    Answer This Question

    Question Answered By:

    • Product Expert, April 09, 2020

      Hello, please click on the [Assembly] button located on the product page to see the assembly instructions. While there is no provided time estimate, the steps and parts to attach are within a minimal amount. Thank you for your question.

  • Hi, we just ordered one of these and was wondering if there was side supports to keep boxes on the conveyors? We have to make a sharp turn and have noticed parts starting to work off the edge.

    Question Asked By: Michael, June 24, 2015

    Answer This Question

    Question Answered By:

    • Product Expert, June 24, 2015

      "There would be no side supports available for this particular model because the side supports would have to bend and move with the configuration of the conveyor as this is a flexible conveyor. I'm very sorry about that. "

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
