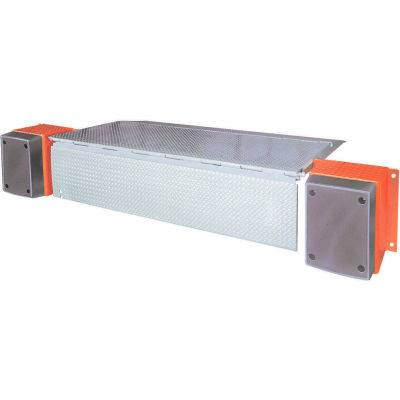

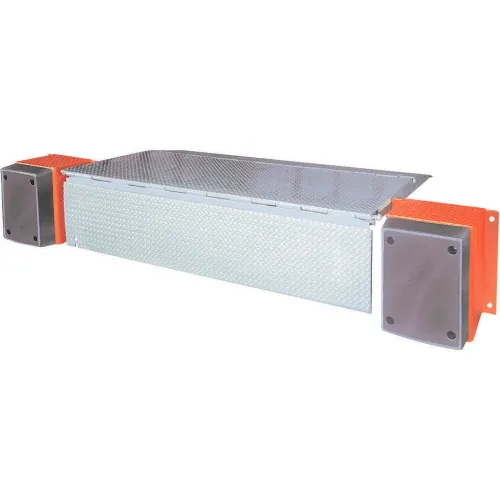

DLM POWERED EDGE OF DOCK LEVELER
Attaches easily to the steel nosing of an existing dock, saving valuable dock loading space; no concrete work or pit necessary. All models have a 5" upward and 5" downward working range. A full 15" lip projects 12" beyond bumper. High strength 3/8" steel safety plate and heavy-duty hinges. Automatically releases and returns to stored position when truck exits. Supplied with two 12" x 14" molded rubber bumpers and reinforced mounting blocks. Push button control operates a 115V 1/2 HP motor which raises and lowers, extends and retracts the leveler for easy operation. Independent hydraulic cylinders on both lip and center plate provide smooth descent control.
Share
Spec Sheet
DLM HED Series AC Powered Edge of Dock Leveler 66"W Usable & 104"W Overall 20,000 Lb. Cap.
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$4,349.00
1
1
Ships in 6 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Width | 66 in |
| Depth | 30 in |
| Weight Capacity | 20000 lbs |
| Weight | 645 lbs |
Product Details
| Assembly Required | No |
| Type | Edge of Dock Leveler |
| Voltage | 115 V |
| Material | Steel |
| Operation | Powered |
| Manufacturers Part Number | HED6620 |
| Bumper Material | Rubber |
| Brand | DLM |
