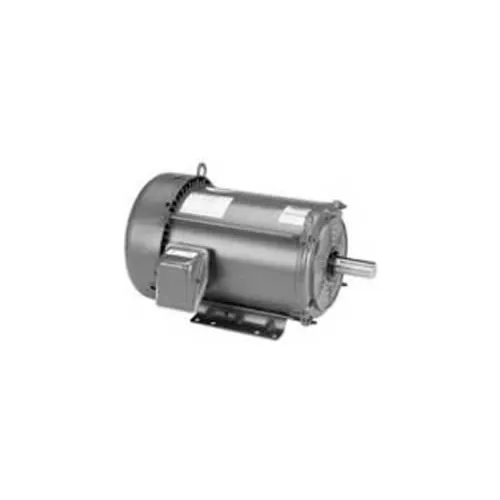

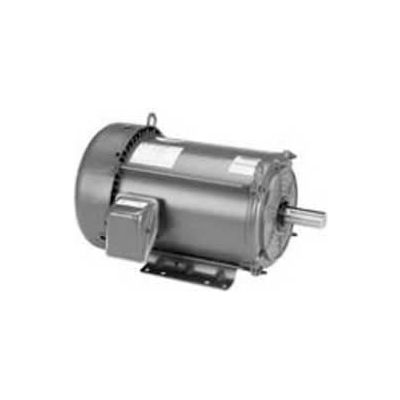

Marathon Motors Premium Efficiency Motor, E2101, 1HP, 1800RPM, 208-230/460V, 3PH, 143T FR, TEFC
Marathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction.
Marathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction.
Weights & Dimensions
- Opposite End Bearing Size 6203
- Weight 39
- Drive End Bearing Size 6205
Product Details
- 60 Hertz kW 0.75 kW
- Mounting Location Rigid
- Assembly Required F1 Only
- Bearing Drive End 6205
- 50 Hertz Kilowatts 0.75 kW
- Ambient Temperature 40 °C
- Nameplate RPM 1800 rpm
- KVA Code N
- IP Code 43
- Insulation Class F
- RPM Range 1701-1800 rpm
- 50 Hertz SF 1
- 50 Hertz Horsepower 1 HP
- Bearing Opp Drive End 6203
- Voltage 208-230/460 V
- Frame 143T
- Service Factor 1.15
- Horsepower 1 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Phase 3
- Enclosure TEFC
- Orientation Horizontal
- Starting Type Across The Line
- 50 Hertz RPM 1500 rpm
- Full Load Efficiency 85.5
- Brand Marathon Motors
- Full Load Amps 3.2-3.2/1.6 FLA
- Motor RPM 60 Hertz 1800 rpm
- Manufacturers Part Number E2101
- 50 Hertz Full Load Amps 3.4/1.7 FLA
- 50 Hertz Voltage 190/380 V
Compliance & Certifications
- CE Approved Y
- NEMA Design B
- CSA Certified Y
- UL Recognized Construction
Customer Review
Product Q & A
There are no questions for this product.
Accessories

Marathon Motors Premium Efficiency Motor, E2101, 1HP, 1800RPM, 208-230/460V, 3PH, 143T FR, TEFC
$540.0
