Baldor-Reliance

Model # :WBB908986

MPN #: JL1307A

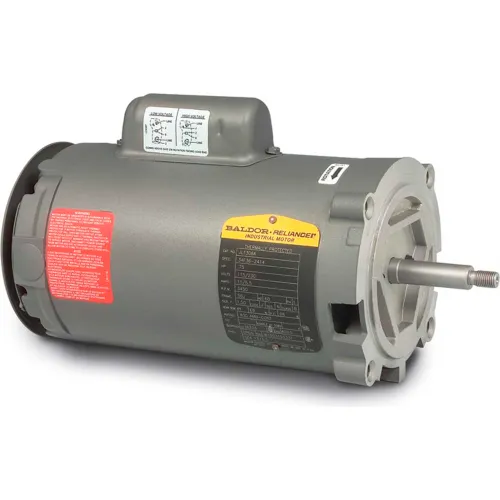

Baldor-Reliance Pump Motor, JL1307A, 1 Phase, 0.75 HP, 115/230 Volts, 1725 RPM, 60 HZ, OPEN, 56J

Product Description
Our pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion proof ratings. Applications for these run the gamut from swimming pool pumps to medium and high thrust in-line pumps used in water treatment plants. Horse powers range in size from 1/3 through 75 HP.

Features
  • Diecast aluminum end plates with machined steel bearing seat insert.
Application(s)
  • Residential and industrial pumps, swimming pool pumps, etc
PRICE
$689.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Dimension C13-7/8 in

Product Details

Power Factor68
Bearing Opp Drive End6203
KVA CodeK
Motor RPM 60 Hertz1725 rpm
Phase1
Manufacturers Part NumberJL1307A
EnclosureOPEN
Service Factor1.25
Bearing Drive End6203
BrandBaldor-Reliance
RPM1,725 rpm
TypePump Motor
Insulation ClassB
Horsepower3/4 HP
Frame56J
Hertz60 Hz
Design CodeN
Amps @ 208V6 A
Enclosure TypeOpen/Drip Proof
Voltage115, 230 V
Full Load Efficiency68
Full Load Amps10.2/5.1 FLA
DutyContinuous
Ambient Temperature40 °C
RPM Range1701-1800 rpm
