Model # :WBB908995

MPN #: VL1205A

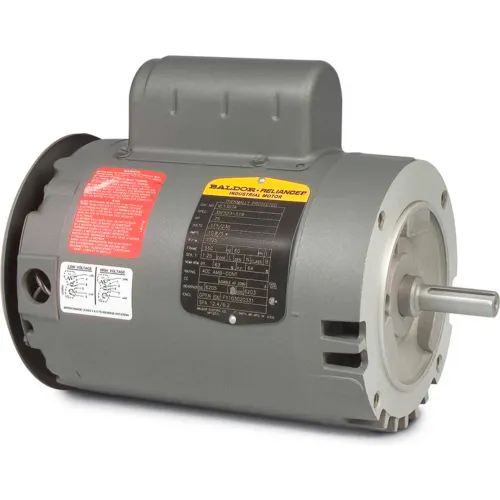

Baldor-Reliance Pump Motor, VL1205A, 1 Phase, 0.33 HP, 115/230 Volts, 3450 RPM, 60 HZ, OPEN, 56C

Product Description
Our pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion proof ratings. Applications for these run the gamut from swimming pool pumps to medium and high thrust in-line pumps used in water treatment plants. Horse powers range in size from 1/3 through 75 HP.

Features
  • Diecast aluminum end plates with machined steel bearing seat insert
Application(s)
  • Residential and industrial pumps, swimming pool pumps, etc.
PRICE
$425.95

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Dimension C11-5/16 in

Product Details

Power Factor56
Bearing Opp Drive End6203
KVA CodeP
Motor RPM 60 Hertz3450 rpm
Phase1
Manufacturers Part NumberVL1205A
EnclosureOPEN
Service Factor1.75
Bearing Drive End6203
BrandBaldor-Reliance
RPM3,450 rpm
TypePump Motor
Insulation ClassB
Horsepower1/3 HP
Frame56C
Hertz60 Hz
Design CodeN
Enclosure TypeOpen/Drip Proof
Voltage115, 230 V
Full Load Efficiency54
Full Load Amps7/3.5 FLA
DutyContinuous
RPM Range3001-3600 rpm
Ambient Temperature40 °C
