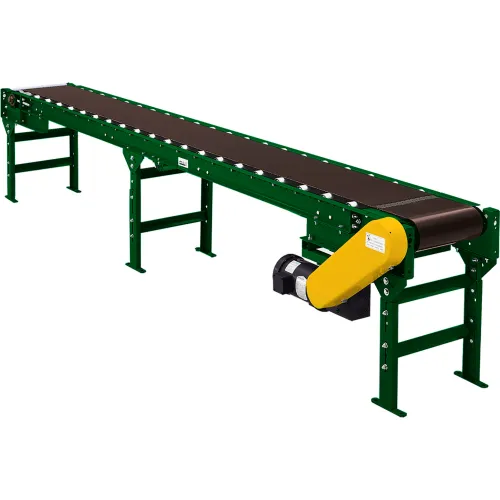

Ashland RB190 Roller Bed Power Belt Conveyor, 18"W x 22'L Belt, 118 lb. Capacity, 6 - 60 FPM

Omni Metalcraft Lineshaft 90 Deg. Slave Curve LSSC1.9X16-32-3-90-T - 2-1/2"-1-11/16" Dia. - 32"BF Lineshaft Driven Live Roller Conveyors are a unique concept in powered conveyors.The basic design employs rollers which are independently driven by a urethane belt from a common drive shaft. The general operation of the conveyor is a driveshaft that runs the full length of the conveyor and transmits power to the rollers via a drive spool and belt. When back pressure is applied to the conveyed product, the spools driving the rollers under the product will slip on the driveshaft allowing the ...

The H15 or 1500 Lbs. Capacity H-stand support may be used with 10" BF (Between the Frame) gravity skatewheel, gravity roller (2-1/2" and 3-1/2" frames), and powered belt conveyor. The H-stand is used for permanent, as opposed to portable conveyor installations. Heights listed are to the top of support. Supports ship unassembled.

Standard specifications include: BED - 6-5/8" deep x 12 ga. formed steel Slider Bed is powder coat painted. Reinforced with 3/4" pipe which forms sockets for guard rails. BELT - Ultimate 140BBS - Nitrile Belt END DRIVE - Located on discharge end of conveyor, chain guard on left hand side. DRIVE PULLEY - 8" dia. with 1-3/16" dia. shaft at bearings, machine crowned and fully lagged. TAIL PULLEY - 6" dia. with 1-3/16" dia. shaft at bearings, machine crowned. SNUB IDLER - Adjustable 2-1/8" dia. for tail end; 2-1/2" dia. for drive end. Pre-lubricated ball bearings. Guards included. RETURN ...

Omni Metalcraft POWER BELT CONVEYOR WITH 6" HIGH SIDE RAILS Shipped complete, including controls. A versatile means of handling a variety of products throughout your facility. Ideal for use in assembly, sorting and inspection. Includes 6"H Side Rails to help prevent cargo from falling during movement. 3-1/2"D x 12 gauge galvanized steel slider bed has black friction surface PVC belt. Includes permanent adjustable leg supports that adjust from 34" to 38" H for added convenience. Standard 60 FPM non-reversing belt speed. Totally enclosed 1/2 HP, 115/230V, 60 Hz single phase motor. Includes ...

Omni Metalcraft Lineshaft 45 Deg. Slave Curve LSSC1.9X16-16-3-45-T - 2-1/2"-1-11/16" Dia. - 16"BF Lineshaft Driven Live Roller Conveyors are a unique concept in powered conveyors.The basic design employs rollers which are independently driven by a urethane belt from a common drive shaft. The general operation of the conveyor is a driveshaft that runs the full length of the conveyor and transmits power to the rollers via a drive spool and belt. When back pressure is applied to the conveyed product, the spools driving the rollers under the product will slip on the driveshaft allowing the ...
