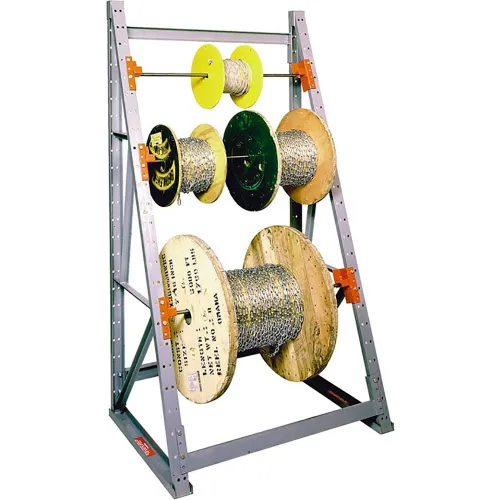

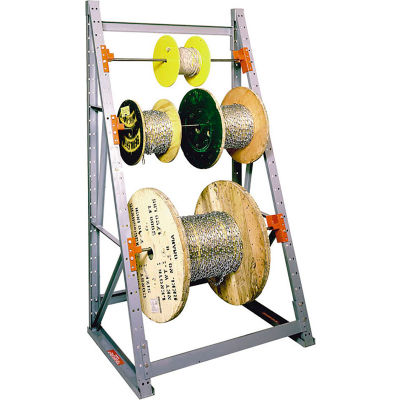

Reel Racks are built to withstand the abuse and punishment found in a manufacturing or distribution environment. Store and dispense poly or wire rope, hose, electrical cable or chain - anything on a reel or spool. Double welded upright are manufactured from hefty 3" structural channel and welded to a 4" channel base. 96" unites have 3 pairs of axle brackets, 120" and 144" units have 4 pairs (additional brackets may be ordered separately). The special axle brackets are adjustable on 2" centers up and down on the uprights; brackets accept axles up to 2 1/2" diameter. It is strongly recommend that units be secured to the floor before use. Ships knocked down; grey enamel finish with orange axle brackets.
Width Figure represents the inside dimension, add 8" to the width figure for overall width dimension.
Features:- Double Welded Upright 3" Structural Channel and Welded to a 4" Channel Base for Industrial Use
- 3 Adjustable Axle Bracket Pairs
- 2,000 lbs. Capacity per Bracket Pair
- Grey Enamel Finish with Orange Axle Brackets
