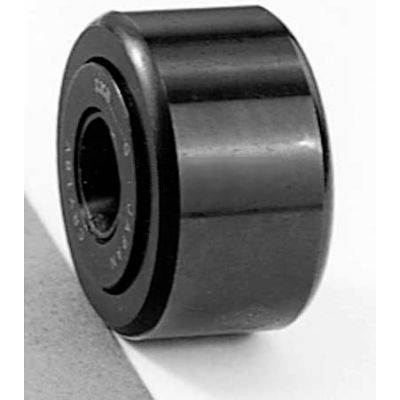

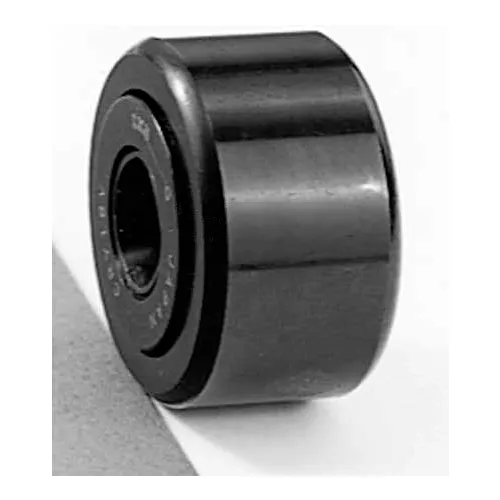

IKO Roller Follower- Full Comp- Inch, CRY20VUU, Double Sealed, 1-1/4" OD

IKO Roller Follower- Full Comp- Inch, CRY20VUU, Double Sealed, 1-1/4" OD

Item #: WBB1309695

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 3

Price: $16.75

Save $0.84 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

IKO Roller Follower- Full Comp- Inch, CRY20VUU, Double Sealed, 1-1/4" OD

IKO Non-separable Yoke Type Roller Follower is full complement bearing with inner ring, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. Its surface is treated with black oxide coating. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.

  • BRAND IKO
  • BEARING STYLE Cylindrical OD
  • DYNAMIC LOAD RATING (N) 23600
  • STATIC LOAD RATING (N) 31700
  • BORE TOLERANCE (mm) +0.005 / -0.010
  • O.D. TOLERANCE (mm) +0 / -0.025
  • MANUFACTURERS PART NUMBER CRY20VUU
  • DESCRIPTION Roller Follower - Full Compliment - Inch Series
  • TYPE Double Sealed
  • SERIES CRY
  • OIL HOLE & GROOVE At inner ring
  • RETAINER None
  • NEEDLE CONSTRUCTION Full Compliment
  • CROWN RADIUS (R) mm (inch) --
  • TRACK CAPACITY (N) 10700
  • PREPACKED GREASE YES
  • SHAFT DIA PUSH FIT (MM) 9.507 to 9.517
  • SHAFT DIA PRESS FIT (MM) 9.528 to 9.538
  • SHAFT DIA DRIVE FIT (MM) 9.523 to 9.533
  • OUTER RING WIDTH MM (INCH) 19.050 (3/4)
  • TOLERANCE OVERALL WIDTH (MM) +0.130 / -0.250
  • TOLERANCE OUTER RING WIDTH (MM) +0 / -0.130
  • OUTER RING CORNER RADIUS MIN. MM (INCH) 1.588 (1/16)
  • SIDE PLATE OD (A) MM (INCH) 25.0 (.984)
  • RADIAL CLEARANCE 0.035 to 0.060
  • BORE DIAMETER MILLIMETERS (INCH) 9.525 (3/8)
  • OVERALL WIDTH MM (INCH) 20.638 (.8125)
  • OD MM (INCH) 31.750 (1-1/4)
