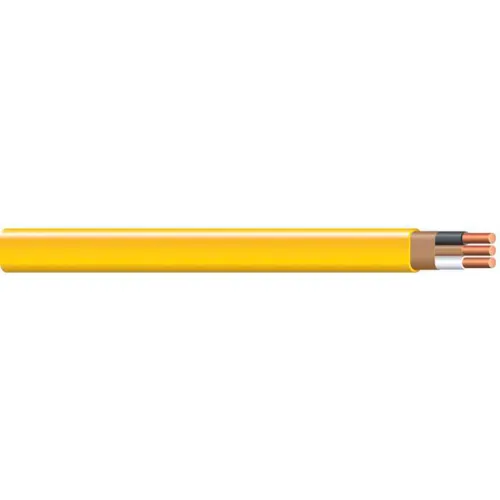

Southwire 28828228 Romex SIMpull ® Cable With Ground, Yellow, 12/2 Awg, 100 Ft

Applications
Southwire's Romex SIMpull ® Type NM-B (nonmetallic-sheathed cable) may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.

Specifications
Southwire's Romex SIMpull ® Type NM-B cable meets or exceeds UL Standard 83, UL Standard 719, Federal Specification A-A-59544, and requirements of the National Electrical Code.

Construction
Southwire's Romex SIMpull ® Type NM-B cable is manufactured as 2, 3, or 4 conductor cable, with a ground wire. Copper conductors are annealed (soft) copper. Stranded conductors are compressed stranded. Conductor insulation is 90°C-rated polyvinyl chloride (PVC), nylon jacketed. Southwire's SIMpull ® Designed for Easier Pulling, Resulting in Easier installation. The cable jacket is color-coded for quick size identification; White - 14 AWG, Yellow - 12 AWG, Orange - 10 AWG, and Black - 8 AWG and 6 AWG.

  • WIRE TYPE Romex
  • WIRE TYPE DESCRIPTION Non Metallic Type B
  • GAUGE 12
  • NUMBER OF CONDUCTORS 2
  • LENGTH FT 100
  • COLOR Yellow
  • PACKAGE TYPE 12" Coil
  • AMPACITY 20
  • MAX VOLTAGE 600
  • HEAT CAPACITY 90 Degrees C
  • LOCATION USAGE Dry
  • INSULATION PVC
  • MANUFACTURERS PART NUMBER 28828228
  • BRAND SouthWire
  • PACKAGE QUANTITY 100 ft
  • WEIGHT LBS 8.2
