DOORKING® 1601-080 Traffic Barrier Gate Operator, 115 V, 1/2 HP, 14'L Arm w/Detector Package

DOORKING® 1601-080 Traffic Barrier Gate Operator, 115 V, 1/2 HP, 14'L Arm w/Detector Package

Item #: WBB2257400

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$4,455.00 up to 9% OFF

Price: $4,067.00

$677.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

DOORKING® 1601-080 Traffic Barrier Gate Operator, 115 V, 1/2 HP, 14'L Arm w/Detector Package

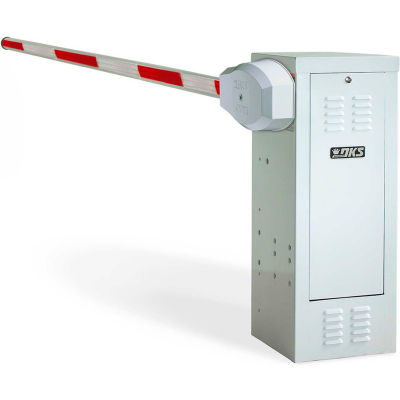

1601-080 Traffic Barrier Gate Operator with Straight Arm and Loop Detector Package. The 1601 operator is designed for single lane (14 ft. max) vehicular traffic control in high traffic commercial and industrial applications. Designed so that it can be mounted on either the left or right hand side of the roadway.

Features
  • Magnetic limit control Ports for plug-in loop detectors.
  • Automatic sequencing inputs for use with slide and swing gate operators.
  • Up input memory buffer.
  • Down memory option. Multiple up commands.
  • Two convenience outlets.
  • 360° gear box rotation.
  • Gate tracker reporting output.
  • Programming switches.
  • Left or right hand mount.
  • 1/2 HP continuous-duty motor.
  • 40:1 gear-box running in a continuous oil bath.
  • 1-1/2 second open time.
  • Dimensions (operator only: 15.25"W x 39.5"H x 14.75"D
  • Class II, III and IV applications.
  • Compliant with UL 325 and 991. ETL listed. To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment prevention devices may need to be installed with this gate operator.
  • 115 V
  • Electronic limit settings
  • DKS patent pending Loop Logic vehicular/pedestrian detection system
  • 5-year limited warranty


  • Includes
  • Barrier Gate Operator Kit, 115V,1/2HP
  • 14' Aluminum Arm and mounting hardware
  • Single channel loop detector
  • MicroPlus/MicroClick Receiver
  • Antenna Kit
  • 10 Micro-Plus Transmitters

Product Specifications

  • LENGTH INCHES168
  • WIDTH INCHES48
  • HEIGHT INCHES32
  • COLOR FINISHGray/Red/White
  • ASSEMBLYUnassembled
  • CONSTRUCTIONGalvanized Steel & Aluminum
  • DESCRIPTIONTraffic Barrier Gate Operator
  • INCLUDESGate Operator, Gate Arm, Detector,Reciever,10 Transmitters, Hardware Kit, Antenn
  • PACKAGE QUANTITY1
  • LIMITED WARRANTY5 Years
  • WEIGHT LBS300
  • POST TYPESurface Mount
  • BOOM LENGTH14'
  • GATE LENGTH168"
  • GATE HEIGHT32"
  • MOUNTINGSurface
  • POST HEIGHT FEET3-1/6
  • BRANDDoorking®
  • VOLTAGE115
  • MOTOR1/2 HP Continuous duty AC Motor
  • MANUFACTURERS PART NUMBER1601-080
