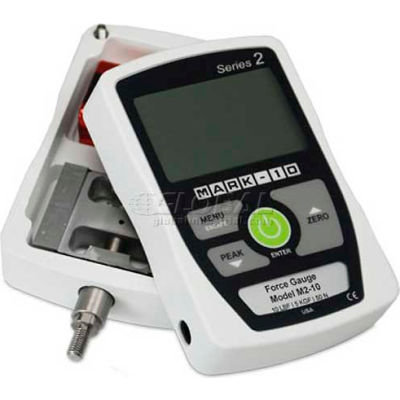

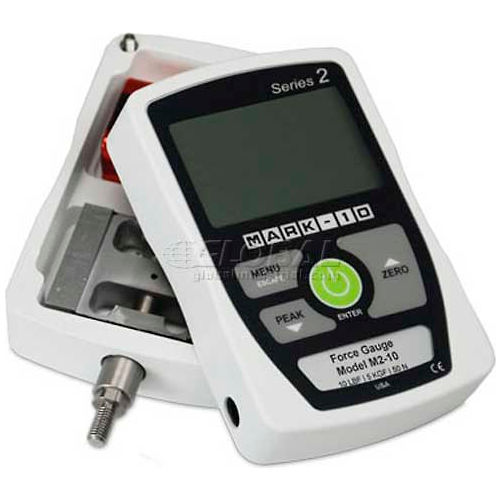

Mark-10® Series 2 Economical Digital Force Gauge - 50 lbF Capacity
Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading. The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.
Features:
Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading. The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.
Features:
- Calculates peak tension and compression values
- 3 selectable units of measurement
- Ultra-compact, ergonomic housing
- Configurable default measurement unit and mode
- 500 Hz sampling rate
- Large, backlit graphic display with auto-dimming
- Powered by 9V battery or available AC adapter
- Reversible housing for alternate load cell orientation
- 9V Battery
- Quick-Start Gauge
- Resource CD
- Certificate of Conformance
- TYPE Series 2
- BRAND Mark-10
- OPERATING HUMIDITY 95 Percent Non-Condensating
- BATTERY LIFE 92 Hours (Backlight Off), 24 Hours (Backlight On)
- ACCURACY ±0.5 Percent of Full Scale
- WARRANTY 3 Years
- SAMPLING RATE 500 Hz
- OPERATING TEMPERATURE 40-100°F
- LENGTH INCHES 4.76
- SAFE OVERLOAD 150 Percent of Full Scale
- MEASUREMENT UNITS lbF, kgF, N
- WIDTH INCHES 2.53
- MANUFACTURERS PART NUMBER M2-50
- POWER SOURCE AC Adapter or 9V Non-Rechargeable Battery
- RESOLUTION 0.05 lbF / 0.02 kgF / 0.02 N
- HEIGHT INCHES 1.5
- DESCRIPTION Economical Digital Force Gauge
- CAPACITY 50 lbF / 25 kgF / 250 N
