Mark-10® Series 5 Advanced Digital Force Gauge - 200 lbF Capacity

Mark-10® Series 5 Advanced Digital Force Gauge - 200 lbF Capacity

Item #: WBB937243

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,162.00

$193.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Mark-10® Series 5 Advanced Digital Force Gauge - 200 lbF Capacity

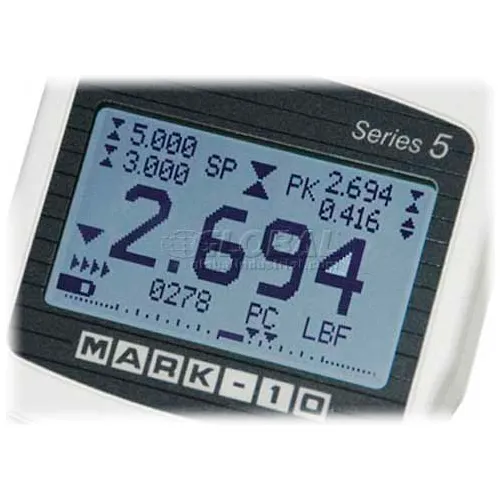

Series 5 advanced digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 1,000 lb (0.5 N to 5,000 N). The gauges feature an industry-leading sampling rate of 7,000 Hz, producing accurate results even for quick-action tests. Accuracy is ±0.1% of full scale ±1 digit, and resolution is 1/5000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges' many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board data memory for up to 1,000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force. The Series 5's averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 5 force gauges are directly compatible with Mark-10 test stands, grips, and software. The gauges include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Features:
  • High-speed 7,000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog output
  • Large backlit graphic display
  • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
  • Live load bar graph with set point markers
  • Programmable set points, with alarms and outputs
  • Peak readings and set points always displayed
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Automatic data output via USB/RS-232
  • 5 selectable units of measurement
  • Configurable audio alarms and key tones
  • Password protection, configurable for individual keys and calibration
Includes:
  • Carrying Case
  • Chisel, Cone, V-Groove, Hook, Flat, and Extension Rod Attachments
  • Universal Voltage AC Adapter
  • Rechargeable Battery
  • Quick-Start Guide
  • USB Cable
  • Resource CD (USB driver, MESURTM Lite software, MESUR™ Gauge DEMO software, and user's guide)
  • NIST-Traceable Certificate of Calibration (data is available for an additional charge)

  • TYPE Series 5
  • BRAND Mark-10
  • BATTERY LIFE 24 Hours (Backlight Off), 7 Hours (Backlight On)
  • ACCURACY ±0.1 Percent of Full Scale, ±1 Digit
  • WARRANTY 3 Years
  • SAMPLING RATE 7,000 Hz
  • LENGTH INCHES 6.74
  • WEIGHT LBS 1.2
  • SAFE OVERLOAD 150 Percent of Full Scale
  • MEASUREMENT UNITS lbF, ozF, gF, kgF, N, kN, mN
  • WIDTH INCHES 2.53
  • OUTPUT FORMAT USB, Mitutoyo (Digimatic), Analog, General Purpose, Set Points
  • MANUFACTURERS PART NUMBER M5-200
  • POWER SOURCE AC Adapter or Rechargeable Battery
  • RESOLUTION 0.05 lbF / 0.02 kgF / 0.2 N
  • HEIGHT INCHES 1.32
  • DESCRIPTION Advanced Digital Force Gauge
  • CAPACITY 200 lbF / 100 kgF / 1000 N
