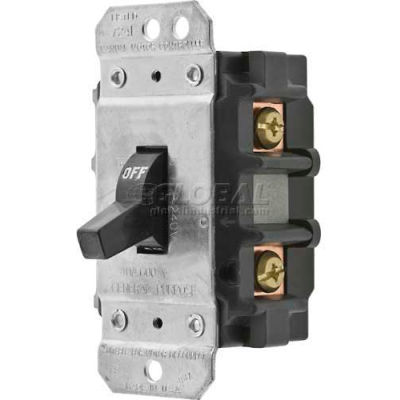

Short Toggle Switch 30 AMP 600V

Short Toggle Switch 30 AMP 600V

Item #: WBB864088

Not Yet Rated

Ships in One Business Day ? Items ship from warehouse within one business day (Mon. - Fri. excluding holidays). Transit times are determined by shipping method and destination.

Enter zip code for delivery date estimate

Shipping to 10465 change

Original Price: $84.95

Clearance Price: $26.95

Save $1.35 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Toggle Switch 30 AMP 600V 3 Phase

Toggle Switch 30 AMP 600V 3 Phase

30 AMP NEMA 1 Enclosed Toggle Switch

30 AMP NEMA 1 Enclosed Toggle Switch

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Advance Controls 134801 CK28.311 Contactor, 3-Pole, 120V

Advance Controls 134801 CK28.311 Contactor, 3-Pole, 120V

Ideal motor controller suitable as a disconnect. Toggle motor controllers/disconnects can be built into equipment and enclosures with either box or panel-mount installation. Strong on/off action with quick-make, slow break operation provides long-life reliability; 10,000 amp high fault short circuit withstand rating.

Weights & Dimensions

  • Depth 2.43 in
  • Width 2.25 in
  • Length 3.78 in
  • Weight 0.45 lbs

Product Details

  • 600V AC 15
  • Short Circuit Withstand Rating as Motor Disconnect 60A MAX J FUSES 10,000 RMS
  • Electrical Life 6,000 CYCLES AT RATED SWITCH LOAD
  • 120V AC 2
  • 480V AC 10
  • Terminal Torque 20 INCH POUNDS
  • Terminal Accomodations AWG MIN. #14 - AWG MAX. #10
  • Flammability Rating UL94HB/VO
  • Amperage 30 A
  • Dielectric Voltage 2,200V AC MINIMUM FOR 1 MINUTE V
  • Phase 1
  • 240V AC 5
  • Max Voltage 600V AC RMS V
  • Brand Bryant
  • Operating Temperature Range MAX. CONTINUOUS 60 DEG. C., MIN. CONTINUOUS W/OUT IMPACT -40 DEG C. °C
  • Short Circuit Withstand Rating As Motor Controller 125A MAX RK5 FUSES
  • Product Type Motor Control SW T
  • Poles 2

Compliance & Certifications

  • UL Certification UL 508 Industrial Control Equipment File # E70402
  • CSA Listing CSA-C22.2 No. 14 Industrial Control Equipment File # LR-46186
