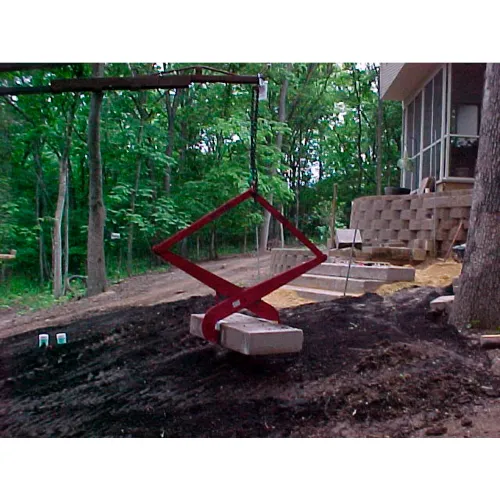

SLAB TONGS
These Steel Tongs Allow Easy Lifting Of Heavy Slabs Of Concrete, Stone And Highly Polished Metal Sheets.
Industrial Tongs are ideal for use in construction work to position slabs that must be protected from scratching. Curved urethane padded surfaces give proper contact for gripping a large range of smooth sized products. Slab mover is made with all welded steel and includes a semi-automatic latch that serves as an aid in positioning the tong when picking up the load. Easily hooks and attaches to hoists, cranes and forklifts for operation. Meets ANSI/AWS D14.1 welding requirements, as well as ASME B30.20 and BTH-1 2008 standards.
Share
Spec Sheet
Caldwell Slab Tong 71-5 1500 Lb. Capacity 18" - 22" Load Width
(1)
|
Questions & Answers (0)
Product Description
PRICE
$2,215.00
1
1
Ships in 22 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Weight Capacity | 1500 lbs |
| Weight | 150 lbs |
| Spread | 18 to 22 in |
| Bail Opening | 1.69 x 2.38 in |
Product Details
| Assembly Required | No |
| Material | Steel |
| Color | Red |
| Manufacturers Part Number | 71-5 |
| Brand | Caldwell |
